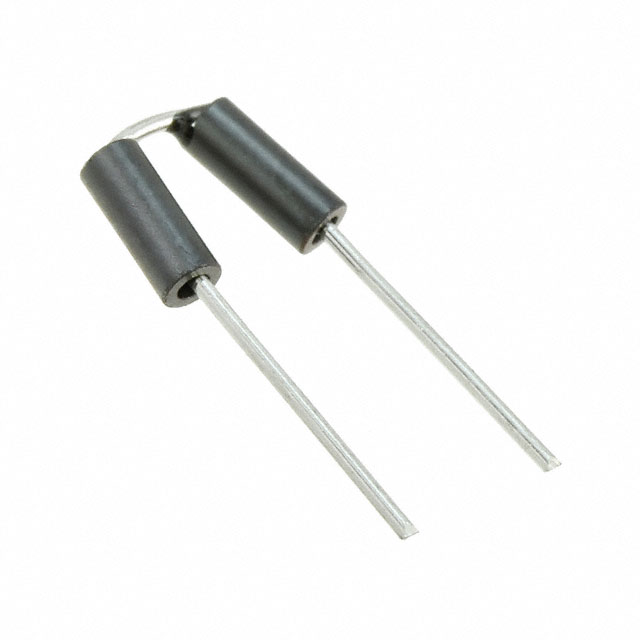

BL03RN2R1Q1A
ObsoleteMurata Power Solutions Inc.
FERRITE BEAD AXIAL RAD 1LN
Deep-Dive with AI
Search across all available documentation for this part.
BL03RN2R1Q1A
ObsoleteMurata Power Solutions Inc.
FERRITE BEAD AXIAL RAD 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BL03RN2R1Q1A |
|---|---|
| Current Rating (Max) [Max] | 6 A |
| DC Resistance (DCR) (Max) | 20 mOhm |
| Height (Max) | 6.5 mm |
| Height (Max) | 0.256 in |
| Mounting Type | Through Hole |
| Number of Lines | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial, Split Radial Bend |
| Size / Dimension [diameter] | 0.091 " |
| Size / Dimension [diameter] | 2.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BL03RN Series
1 Ferrite Bead Axial, Split Radial Bend 6A 20mOhm
Documents
Technical documentation and resources
No documents available
