23144272M5712(R)

Active

GlobTek, Inc.

CORD 17AWG CEE7/7-IEC 320C5 8.2'

Search across all available documentation for this part.

Active

GlobTek, Inc.

CORD 17AWG CEE7/7-IEC 320C5 8.2'

Technical Specifications

Parameters and characteristics for this part

Specification	23144272M5712(R)

1st Connector	CEE 7/7, Right Angle
2nd Connector	IEC 320-C5
Approval Agency Marking	CEBEC, DEMKO, FIMKO, KEMA, LCIE, NEMKO, OVE, SEMKO, VDE
Approved Countries	Austria, Netherlands, Norway, France, Belgium, Germany, Finland, Denmark, Sweden
Color	Black
Cord Type	H05VV-F
Current Rating (Amps)	7 A
Length [x]	8.2 '
Length [x]	2.5 m
Number of Conductors	3
Operating Temperature	70 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	125 VDC
Wire Gauge	17 AWG

Part	Cord Type	Operating Temperature	Length [x]	Length [x]	Color	Shielding	Style	Number of Conductors	Approved Countries [custom]	Approval Agency Marking	1st Connector	Voltage Rating	Wire Gauge	Current Rating (Amps)	2nd Connector	Approved Countries	Length	Length
GlobTek, Inc. 23144272M5701-T(R)	H05VV-F	70 °C	8.2 '	2.5 m	Black	Unshielded	Female Sockets Male Pins	3	Armenia Austria Belarus Belgium Denmark Finland France Germany Italy Kazakhstan Kirghistan Netherlands Norway Sweden	CEBEC DEMKO EAC FIMKO IMQ KEMA LCIE NEMKO NF OVE SEMKO VDE	CEE 7/7	250 VAC	17 AWG	10 A
GlobTek, Inc. 23144272M5702L-T(R)	H05VV-F	70 °C	8.2 '	2.5 m	Black	Unshielded	Female Sockets Male Pins	3		CEBEC DEMKO FIMKO KEMA LCIE NEMKO OVE SEMKO VDE	CEE 7/7	250 VAC	17 AWG	10 A	IEC 320-C13 Left Angle
GlobTek, Inc. 23144272M5002(R)	H05VV-F	70 °C			Black	Unshielded	Male Pins (Blades) to Leads	3		CEBEC DEMKO FIMKO KEMA NEMKO NF OVE SEMKO VDE	CEE 7/7	250 VAC	17 AWG	10 A	Cable	Austria Belgium Denmark Finland France Germany Netherlands Norway Sweden	2.52 m	8.25 ft
GlobTek, Inc. 23144272M5712(R)	H05VV-F	70 °C	8.2 '	2.5 m	Black	Unshielded	Female Sockets Male Pins	3		CEBEC DEMKO FIMKO KEMA LCIE NEMKO OVE SEMKO VDE	CEE 7/7 Right Angle	125 VDC	17 AWG	7 A	IEC 320-C5	Austria Belgium Denmark Finland France Germany Netherlands Norway Sweden
GlobTek, Inc. 23144272M5701A(R)	H05VV-F	70 °C	8.2 '	2.5 m	Black	Unshielded	Female Sockets Male Pins	3	Austria Belgium Denmark Europe Finland France Germany Sweden	CEBEC DEMKO ENEC FIMKO KEMA LCIE NEMKO OVE SEMKO VDE	CEE 7/7	250 VDC	17 AWG	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

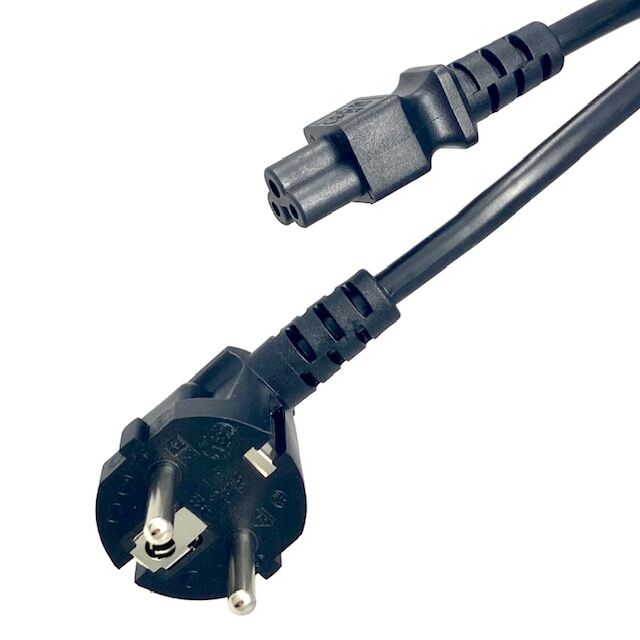

8.20' (2.50m) Power Cord Black CEE 7/7, Right Angle To IEC 320-C5 H05VV-F
