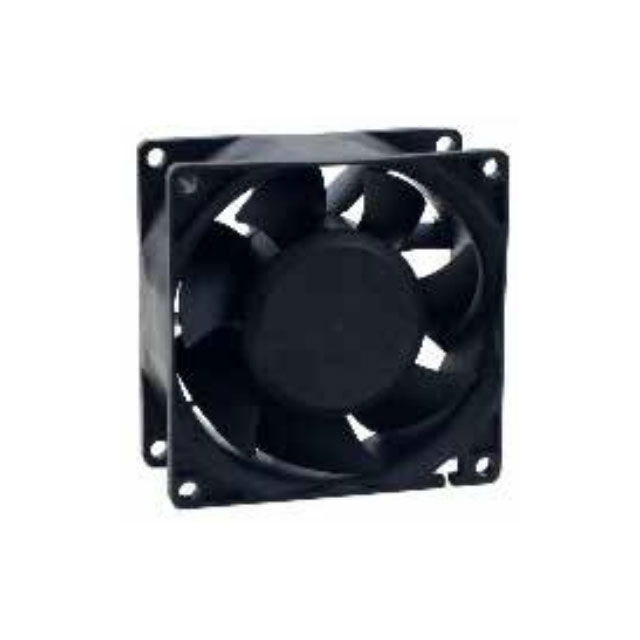

MR8038M12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 80X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet

MR8038M12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 80X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MR8038M12B-RSR

Air Flow	76.2 CFM
Air Flow	2.13 mł/min
Bearing Type	Ball
Current Rating (Amps)	660 mA
Fan Type	Tubeaxial
Features	Auto Restart
Material - Blade	Plastic
Material - Frame	Plastic
Noise	50 dB(A)
RPM	6000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.74 in H2O
Static Pressure	184.3 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Width [y]	38 mm

MR8038 Series

Part	Material - Frame	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Noise	Bearing Type	Air Flow	Air Flow	Voltage - Rated	Width [y]	Static Pressure	Static Pressure	RPM	Material - Blade	Termination	Fan Type	Features	Air Flow
Mechatronics Bearing Group MR8038L12B-RSR	Plastic	0.38 A	80 mm	80 mm	45 dB(A)	Ball	1.78 mł/min	63.5 CFM	12 VDC	38 mm	0.51 in H2O	127 Pa	5000 RPM	Plastic	2 Wire Leads	Tubeaxial	Auto Restart
Mechatronics Bearing Group MR8038X24B-RSR	Plastic	1.2 A	80 mm	80 mm	65 dB	Ball	3.53 m³/min	126 CFM	24 VDC	38 mm	2.03 in H2O	505.7 Pa	10000 RPM	Plastic	2 Wire Leads	Tubeaxial	Auto Restart
Mechatronics Bearing Group MR8038M24B-RSR	Plastic	0.33 A	80 mm	80 mm	50 dB(A)	Ball	2.13 mł/min	76.2 CFM	24 VDC	38 mm	0.74 in H2O	184.3 Pa	6000 RPM	Plastic	2 Wire Leads	Tubeaxial	Auto Restart
Mechatronics Bearing Group MR8038E24B-RSR	Plastic	0.62 A	80 mm	80 mm	59 dB(A)	Ball	2.83 m³/min	101.2 CFM	24 VDC	38 mm	1.311 in H2O	326.6 Pa	8000 RPM	Plastic	2 Wire Leads	Tubeaxial	Auto Restart
Mechatronics Bearing Group MR8038X24B1+6-RSR	Plastic	1.2 A	80 mm	80 mm	65 dB	Ball	3.53 m³/min	126 CFM	24 VDC	38 mm	2.03 in H2O	505.7 Pa	10000 RPM	Plastic	4 Wire Leads	Tubeaxial	Auto Restart PWM Control Speed Sensor (Tach)
Mechatronics Bearing Group MR8038H12B-RSR	Plastic	1 A	80 mm	80 mm	56 dB	Ball	2.48 mł/min		12 VDC	38 mm	1 in H2O	249.1 Pa	7000 RPM	Plastic	2 Wire Leads	Tubeaxial	Auto Restart	88.6 CFM
Mechatronics Bearing Group MR8038H24B-RSR	Plastic	0.5 A	80 mm	80 mm	56 dB	Ball	2.48 mł/min		24 VDC	38 mm	1 in H2O	249.1 Pa	7000 RPM	Plastic	2 Wire Leads	Tubeaxial	Auto Restart	88.6 CFM
Mechatronics Bearing Group MR8038M12B-RSR	Plastic	660 mA	80 mm	80 mm	50 dB(A)	Ball	2.13 mł/min	76.2 CFM	12 VDC	38 mm	0.74 in H2O	184.3 Pa	6000 RPM	Plastic	2 Wire Leads	Tubeaxial	Auto Restart
Mechatronics Bearing Group MR8038L24B-RSR	Plastic		80 mm	80 mm	45 dB(A)	Ball	1.78 mł/min	63.5 CFM	24 VDC	38 mm	0.51 in H2O	127 Pa	5000 RPM	Plastic	2 Wire Leads	Tubeaxial	Auto Restart

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.61

Description

General part information

MR8038 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 76.2 CFM (2.13mł/min) 2 Wire Leads
