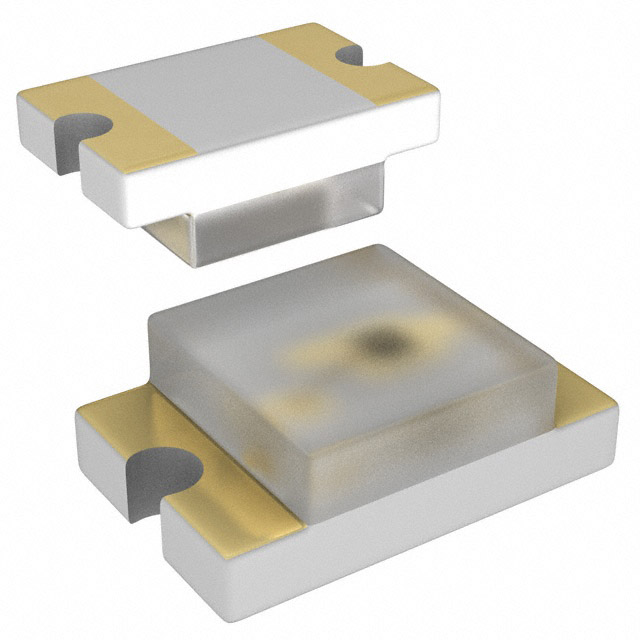

QTLP630CBTR

Active

Everlight Electronics Co Ltd

LED BLUE CLEAR 0805 SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED BLUE CLEAR 0805 SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Millicandela Rating	Current - Test	Lens Style	Viewing Angle	Lens Transparency	Wavelength - Dominant	Configuration	Height (Max) [Max]	Mounting Type	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Color	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Lens Color
Everlight Electronics Co Ltd QTLP630C2TR	0805	10 mcd	20 mA	Rectangle with Flat Top	140 °	Clear	630 nm	Standard	1.2 mm	Surface Mount	635 nm	2 V	0805	Red	2 mm	1.25 mm	1.25 mm	1.4 mm	Colorless
Everlight Electronics Co Ltd QTLP630CYTR	0805	40 mcd	20 mA	Rectangle with Flat Top	140 °	Clear	589 nm	Standard	1.2 mm	Surface Mount	590 nm	2 V	0805	Yellow	2 mm	1.25 mm	1.25 mm	1.4 mm	Colorless
Everlight Electronics Co Ltd QTLP630CAGTR	0805	15 mcd	20 mA	Rectangle with Flat Top	140 °	Clear	573 nm	Standard	1.2 mm	Surface Mount	575 nm	2 V	0805	Yellow-Green	2 mm	1.25 mm	1.25 mm	1.4 mm	Colorless
Everlight Electronics Co Ltd QTLP630CIBTR	0805	25 mcd	20 mA	Rectangle with Flat Top	140 °	Clear	470 nm	Standard	1.2 mm	Surface Mount	465 nm	3.5 V	0805	Blue	2 mm	1.25 mm	1.25 mm	1.4 mm	Colorless
Everlight Electronics Co Ltd QTLP630CBTR	0805	20 mcd	20 mA	Rectangle with Flat Top	140 °	Clear	465 nm	Standard	1.2 mm	Surface Mount	430 nm	3.8 V	0805	Blue	2 mm	1.25 mm	1.25 mm	1.4 mm	Colorless

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Blue 465nm LED Indication - Discrete 3.8V 0805 (2012 Metric)

Technical documentation and resources
