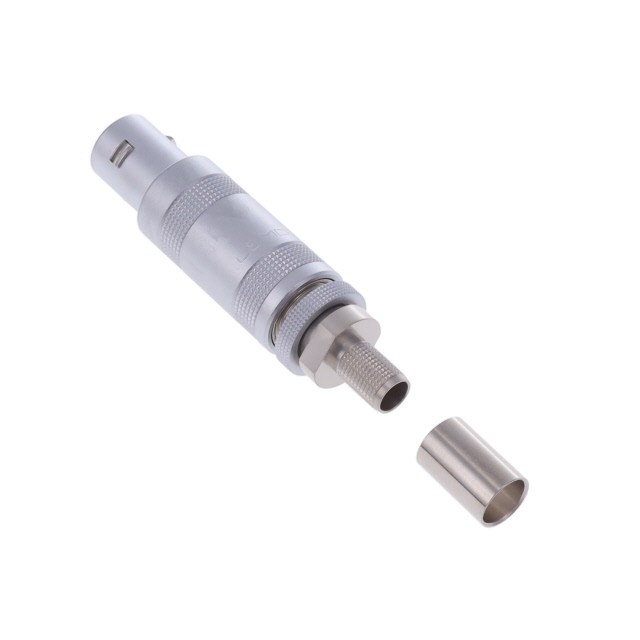

FFR.1S.408.CLAE61

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS STRAIGHT PLUG F. CABLE CRIMPING

Search across all available documentation for this part.

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS STRAIGHT PLUG F. CABLE CRIMPING

Technical Specifications

Parameters and characteristics for this part

Specification	FFR.1S.408.CLAE61

Backshell Material, Plating	Brass, Chrome
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Shielded

Part	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Cable Opening [x]	Cable Opening [x]	Primary Material	Shielding	Mounting Type	Current Rating (Amps)	Color	Insert Material	Contact Material	Number of Positions	Fastening Type	Ingress Protection	Connector Type	Contact Finish - Mating	Backshell Material, Plating	Shell Finish	Shell Material	Accessory Type	For Use With/Related Products
LEMO FFR.1S.408.CLAE46	Keyed	-55 °C	250 °C	UL94 V-0	0.157 in 0.181 in	4 mm 4.6 mm	Metal	Shielded	Free Hanging (In-Line)	6 A	Silver	Polyetheretherketone (PEEK)	Brass	1	Push-Pull	IP50	Male Pins Plug	Gold	Brass Chrome	Chrome	Brass
LEMO FFR.1S.160.MN																						Crimp Ferrule	1S Series Connector
LEMO FFR.1S.408.CLAE61	Keyed	-55 °C	250 °C	UL94 V-0			Metal	Shielded	Free Hanging (In-Line)	6 A	Silver	Polyetheretherketone (PEEK)	Brass	1	Push-Pull	IP50	Male Pins Plug	Gold	Brass Chrome	Chrome	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Plug, Male Pins Solder Cup
