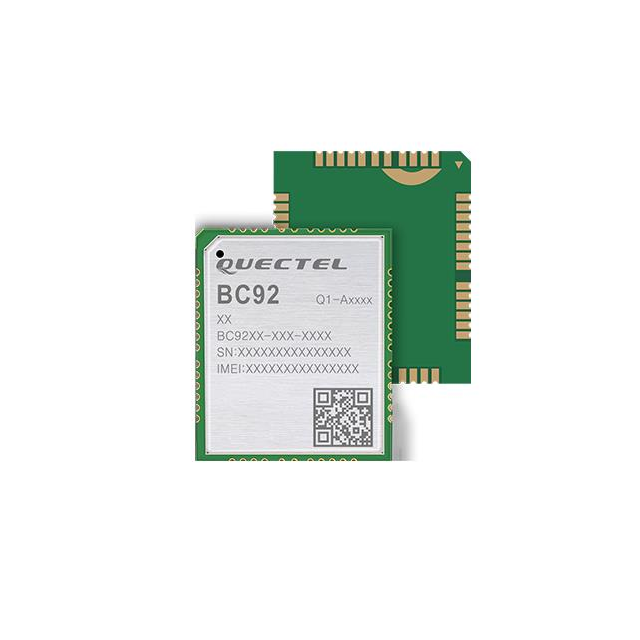

BC92RB-08-STD
NRNDQuectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
BC92RB-08-STD
NRNDQuectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BC92RB-08-STD |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 1.2 mA |
| Data Rate | 158.5 kbps |
| Frequency | 1900 MHz, 1800 MHz, 900 MHz, 850 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 50-SMD Module |
| Power - Output | 33 dBm |
| Protocol | GPRS, LTE, GSM |
| RF Family/Standard | Cellular |
| Sensitivity | -129 dBm |
| Serial Interfaces | UART, ADC |
| Utilized IC / Part | RDA8909B |
| Voltage - Supply [Max] | 4.2 V |
| Voltage - Supply [Min] | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 13.12 | |
| 10 | $ 11.88 | |||
| 25 | $ 10.94 | |||
| 100 | $ 10.00 | |||
| Digi-Reel® | 1 | $ 13.12 | ||
| 10 | $ 11.88 | |||
| 25 | $ 10.94 | |||
| 100 | $ 10.00 | |||
| Tape & Reel (TR) | 250 | $ 9.38 | ||
| 500 | $ 8.75 | |||
| 750 | $ 8.44 | |||
Description
General part information
BC92 Series
Cellular GSM, GPRS, LTE Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
