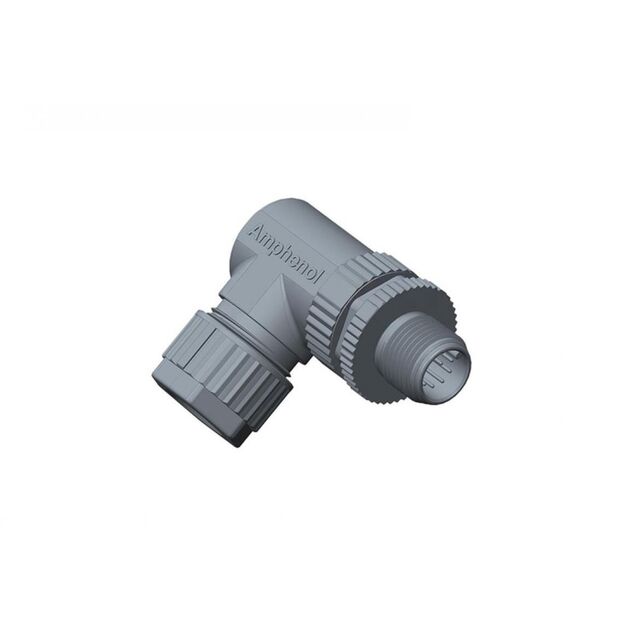

MSAP-10BMMA-SR7001

Active

Amphenol LTW

M12 ASSY CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M12 ASSY CONN

Technical Specifications

Parameters and characteristics for this part

Specification	MSAP-10BMMA-SR7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.276 in
Cable Opening [Max] [diameter]	7 mm
Cable Opening [Min] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.157 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	M12-10
Shielding	Unshielded
Voltage Rating	30 VDC

Part	Connector Type	Primary Material	Orientation	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Number of Positions	Ingress Protection	Backshell Material, Plating	Features	Color	Shell Size - Insert
Amphenol LTW MSAP-10BMMA-SR7001	Male Pins Receptacle	Plastic	A	Copper Alloy	30 VDC	-40 °C	105 ░C	Nylon Polyamide (PA)	Unshielded	0.276 in	4 mm	0.157 in	7 mm	1.5 A	Gold	Free Hanging (In-Line) Right Angle	10	IP67 - Dust Tight Waterproof	Nylon Polyamide (PA)	Backshell	Black	M12-10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Solder Cup
