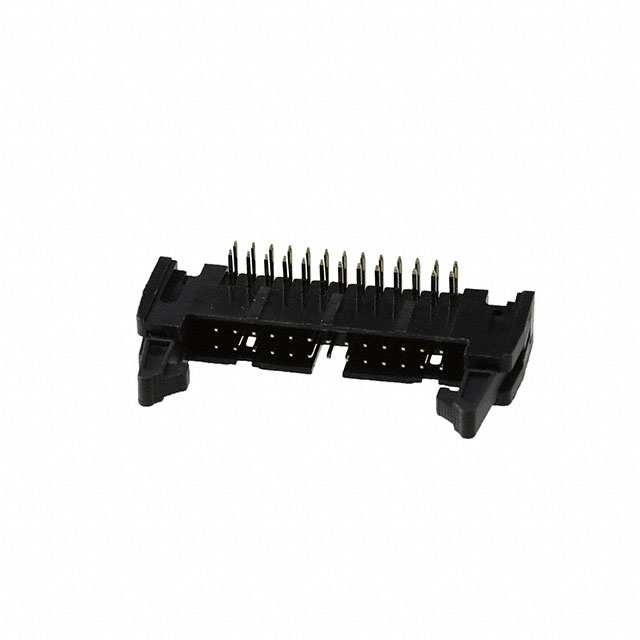

MHR-26-HUAL

Active

Adam Tech

CONN HEADER R/A 26POS 2.54MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MHR-26-HUAL

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.4 mm
Insulation Height	0.331 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

MHR-26 Series

Part	Contact Type	Contact Finish - Post	Contact Shape	Features	Voltage Rating	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Shrouding	Contact Material	Number of Rows	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Color	Style	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Termination	Number of Positions	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech MHR-26-HUAS	Male Pin	Gold	Square	Keying Slot	250 VAC	Through Hole Right Angle	Header	Flash	Gold	Shrouded - 4 Wall	Brass	2	UL94 V-0	8.4 mm	0.331 in	Black	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	105 ░C	-55 °C	Flash	0.1 in	2.54 mm	Solder	26	3 A	2.54 mm	0.1 in	0.157 in	4 mm	Latch Lock/Eject Hooks Short	All
Adam Tech MHR-26-HUAL	Male Pin	Gold	Square	Keying Slot	250 VAC	Through Hole Right Angle	Header	Flash	Gold	Shrouded - 4 Wall	Brass	2	UL94 V-0	8.4 mm	0.331 in	Black	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	105 ░C	-55 °C	Flash	0.1 in	2.54 mm	Solder	26	3 A	2.54 mm	0.1 in	0.142 in	3.6 mm	Latch Lock/Eject Hooks Long	All
Adam Tech MHR-26-VUAS	Male Pin	Gold	Square		250 VAC	Through Hole	Header	Flash	Gold	Shrouded - 4 Wall	Brass	2	UL94 V-0	17.2 mm	0.677 in	Black	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	105 ░C	-55 °C	Flash	0.1 in	2.54 mm	Solder	26	3 A	2.54 mm	0.1 in			Latch Lock/Eject Hooks Short	All	0.134 in	3.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.99
		10	$ 1.52
		80	$ 1.20
		440	$ 1.09
