09200-72-PBGB0B

Active

METZ CONNECT USA Inc.

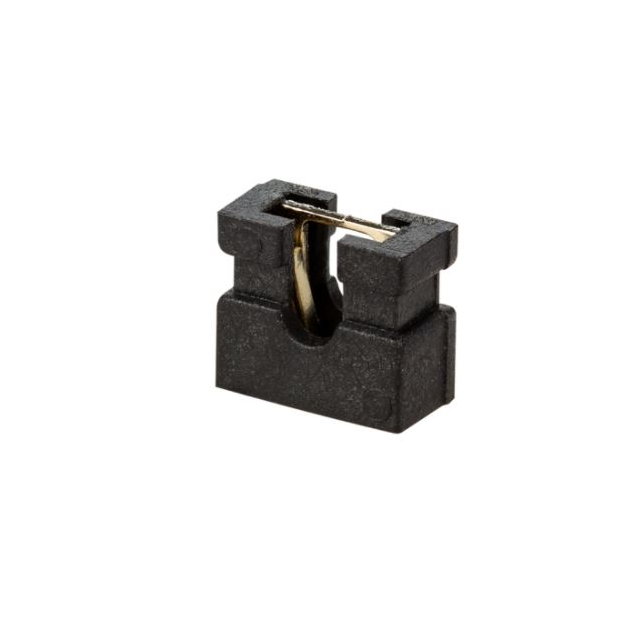

MINI JUMPER, SHUNT, 2.00MM, OPEN

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

MINI JUMPER, SHUNT, 2.00MM, OPEN

Technical Specifications

Parameters and characteristics for this part

Specification	09200-72-PBGB0B

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	0.144 "
Height [z]	3.65 mm
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Type	Open Top

Part	Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Housing Material	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Color	Gender	Contact Finish	Current Rating (Amps)	Height [z]	Height [z]
METZ CONNECT USA Inc. 09200-72-PBGB0B	Open Top	0.079 in	2 mm	Flash	Glass Filled Nylon 6/6 Polyamide (PA66)	1 x 2	2	Black	Female Sockets	Gold	3 A	0.144 "	3.65 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.079" (2.00mm) Gold
