1SS306TE85LF
ActiveToshiba Semiconductor and Storage
DIODE ARRAY GP 200V 100MA SC61B
Deep-Dive with AI
Search across all available documentation for this part.
1SS306TE85LF
ActiveToshiba Semiconductor and Storage
DIODE ARRAY GP 200V 100MA SC61B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SS306TE85LF |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 100 mA |
| Current - Reverse Leakage @ Vr | 1 µA |
| Diode Configuration | 2 Independent |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125 °C |

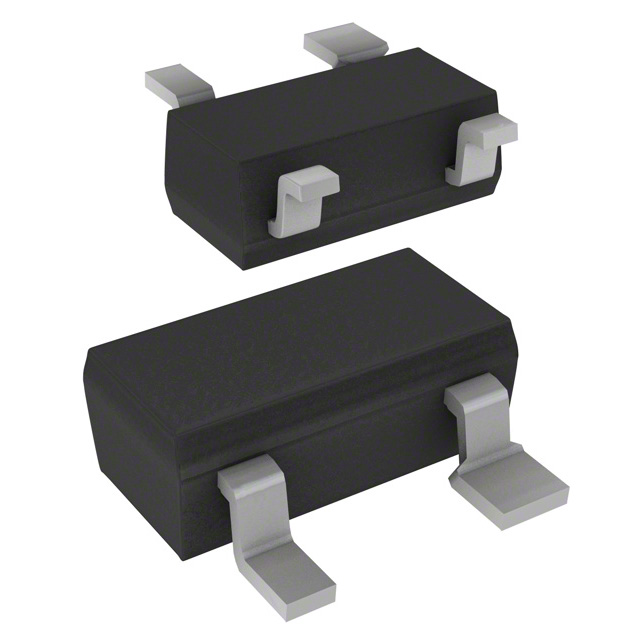

| Package / Case | SC-61AA |
| Reverse Recovery Time (trr) | 60 ns |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | SC-61B |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.13 | ||
| 6000 | $ 0.11 | |||
| 9000 | $ 0.11 | |||
| 15000 | $ 0.10 | |||
| 21000 | $ 0.10 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.09 | |||
Description
General part information
1SS306 Series
Diode Array 2 Independent 200 V 100mA Surface Mount SC-61AA
Documents
Technical documentation and resources
No documents available
