XR76121EVB

Active

MaxLinear, Inc.

EVAL BOARD FOR XR76121

Search across all available documentation for this part.

Active

MaxLinear, Inc.

EVAL BOARD FOR XR76121

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Frequency - Switching [Max]	Frequency - Switching [Min]	Package / Case	Synchronous Rectifier	Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Input (Min) [Min]	Number of Outputs	Output Configuration	Voltage - Output (Max) [Max]	Topology	Output Type	Current - Output	Main Purpose	Regulator Topology	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Voltage - Input [Max]	Voltage - Input [Min]
MaxLinear, Inc. XR76121EL-F	16-QFN (5x6)	1 MHz	200 kHz	16-PowerVQFN		Step-Down	-40 °C	125 ¯C	22 V	0.6 V	Surface Mount	4.5 V	1	Positive	22 V	Buck	Adjustable	20 A
MaxLinear, Inc. XR76121EVB																		20 A	DC/DC Step Down	Buck	XR76121	Board(s)	Non-Isolated	1	Fully Populated	22 V	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.75

General part information

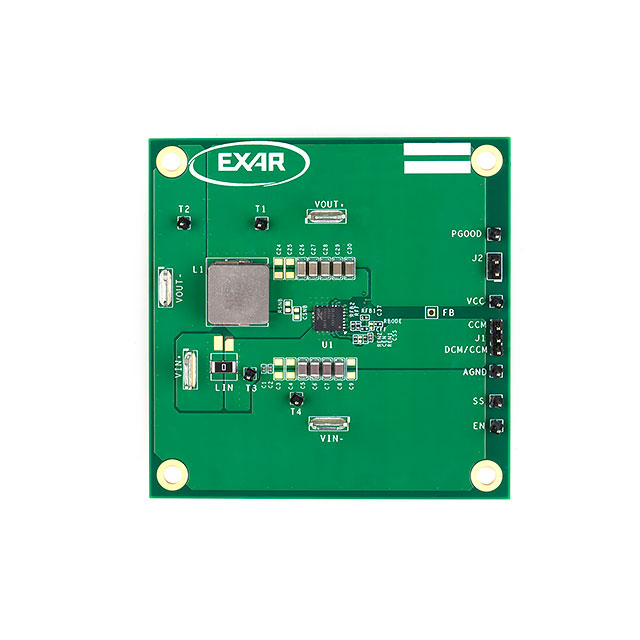

XR76121 PowerBlox™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
