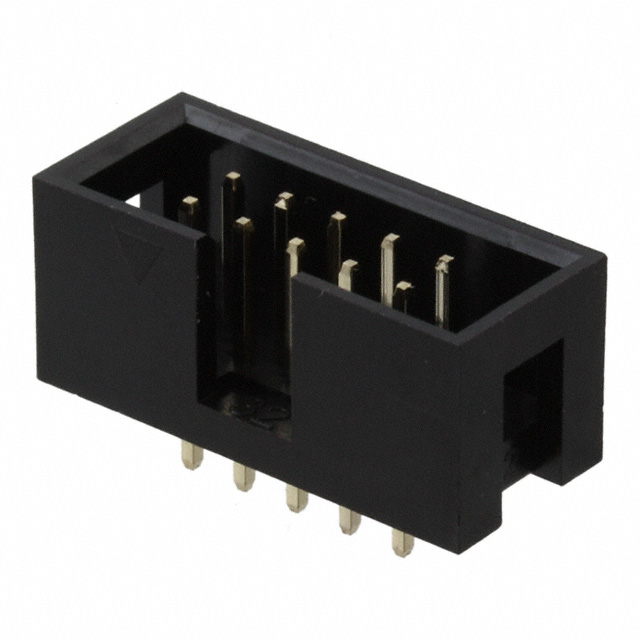

302-S101

Active

On Shore Technology Inc.

CONN HEADER VERT 10POS 2.54MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN HEADER VERT 10POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	302-S101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.25 µin
Contact Finish Thickness - Post	0.032 µm
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Positions	Insulation Color	Voltage Rating	Connector Type	Shrouding	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Termination	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Material	Style	Number of Rows	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Mating	Features
On Shore Technology Inc. 302-S101	10	Black	250 VDC	Header	Shrouded - 4 Wall	Push-Pull	2.54 mm	0.1 in	-40 °C	105 ░C	Square	3 A	UL94 V-0	All	0.358 in	9.1 mm	0.122 "	3.1 mm	Solder	Flash	Gold	Brass	Board to Cable/Wire	2	Polyester Glass Filled	0.1 in	2.54 mm	Male Pin	1.25 µin	0.032 µm	Through Hole	Gold	Keying Slot

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 10 position 0.100" (2.54mm)
