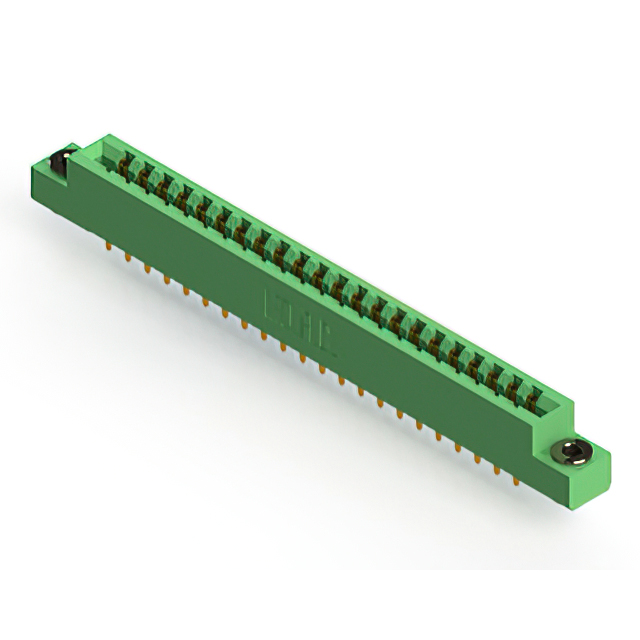

305-044-521-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
305-044-521-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-044-521-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-044 Series
| Part | Contact Material | Pitch [x] | Pitch [x] | Mounting Type | Color | Read Out | Number of Rows | Number of Positions/Bay/Row [custom] | Material - Insulation | Termination | Termination Rows | Gender | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Panel Mount Through Hole | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | 10 Áin | 0.25 Ám | Semi Bellows | |
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder Eyelet(s) | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Gold | 10 Áin | 0.25 Ám | Semi Bellows | ||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder Eyelet(s) | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | 10 Áin | 0.25 Ám | Semi Bellows | ||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Gold | 10 Áin | 0.25 Ám | Semi Bellows | Card Extender |
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | Semi Bellows | Card Extender | ||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | Semi Bellows | |||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Panel Mount Through Hole | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | Semi Bellows | |||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Panel Mount Through Hole | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | Semi Bellows | |||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Panel Mount Through Hole | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 10 Áin | 0.25 Ám | Semi Bellows | |||
EDAC Inc. | Copper Alloy | 0.156 in | 3.96 mm | Panel Mount Through Hole | Green | Dual | 2 | 22 | Polyester Thermoplastic | Solder | 2 | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 44 | -40 °C | 105 ░C | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Gold | 10 Áin | 0.25 Ám | Semi Bellows |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.30 | |
Description
General part information
305-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Documents
Technical documentation and resources
