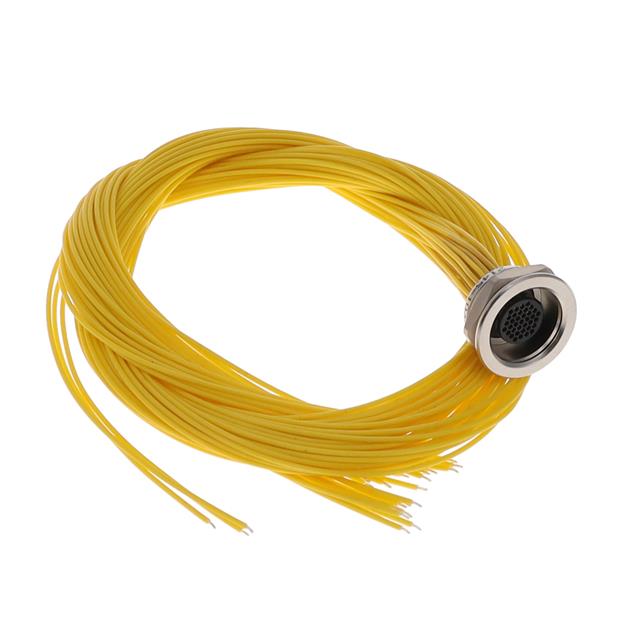

MIKQ7-37PH001
ActiveITT Cannon, LLC
CIRC CBL 37POS RCPT TO WIRE 1.5'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MIKQ7-37PH001 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 37 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation [custom] | Keyed |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Yellow |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Shielding | Unshielded |
MIKQ7 Series
| Part | Shielding | 1st Connector Type | Color | Length [x] | Length [x] | Assembly Configuration | 1st Connector Number of Positions | Cable Type | 1st Connector Mounting Type | 1st Connector Number of Positions Loaded | 1st Connector Gender | 1st Connector Orientation [custom] | 2nd Connector Type | Shell Material | Insert Material | Shell Finish | Features | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Applications | Termination | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Connector Type | Orientation | Number of Positions | Contact Finish - Mating | Mounting Feature | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Unshielded | Receptacle | Multiple | 3 ft | 914.4 mm | Standard | 19 | Individual | Panel Mount | All | Male Pins | Keyed | Wire Leads | |||||||||||||||||||||
ITT Cannon, LLC | Unshielded | Receptacle | Yellow | 1.5 ft | 457.2 mm | Standard | 19 | Individual | Panel Mount | All | Male Pins | Keyed | Wire Leads | |||||||||||||||||||||
ITT Cannon, LLC | Unshielded | Receptacle | Multiple | 1.5 ft | 457.2 mm | Standard | 7 | Individual | Panel Mount | All | Male Pins | Keyed | Wire Leads | |||||||||||||||||||||
ITT Cannon, LLC | Unshielded | Brass | Thermoplastic | Electroless Nickel | Coupling Nut | Copper Alloy | 1.27 µm | 50 µin | Push-Pull | Instrumentation Medical | Wire Leads | 3 A | -55 °C | 125 °C | Metal | Male Pins Receptacle | Keyed | 7 | Gold | Flange | ||||||||||||||
ITT Cannon, LLC | Unshielded | Receptacle | Multiple | Standard | 7 | Individual | Panel Mount | All | Male Pins | Keyed | Wire Leads | 6 ft | 1.83 m | |||||||||||||||||||||
ITT Cannon, LLC | Unshielded | Receptacle | Multiple | 3 ft | 914.4 mm | Standard | 7 | Individual | Panel Mount | All | Male Pins | Keyed | Wire Leads | |||||||||||||||||||||
ITT Cannon, LLC | Unshielded | Receptacle | Standard | 7 | Individual | Panel Mount | All | Male Pins | Keyed | Wire Leads | ||||||||||||||||||||||||
ITT Cannon, LLC | Unshielded | Receptacle | Multiple | 4 ft | 1.22 m | Standard | 37 | Individual | Panel Mount | All | Male Pins | Keyed | Wire Leads | |||||||||||||||||||||
ITT Cannon, LLC | Unshielded | Receptacle | Yellow | 3 ft | 914.4 mm | Standard | 19 | Individual | Panel Mount | All | Male Pins | Wire Leads | ||||||||||||||||||||||
ITT Cannon, LLC | Unshielded | Receptacle | Yellow | 1.5 ft | 457.2 mm | Standard | 37 | Individual | Panel Mount | All | Male Pins | Keyed | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 273.56 | |
Description
General part information
MIKQ7 Series
Circular Cable Assembly Unshielded 1.50' (457.20mm)
