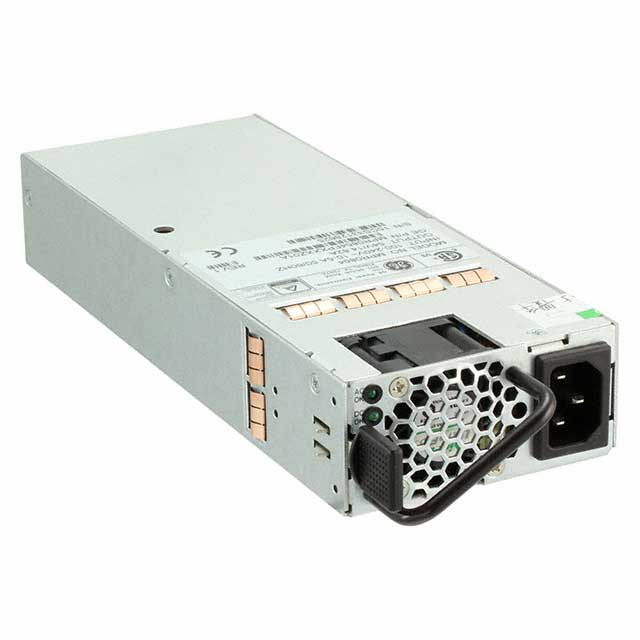

MPR0854FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 54V 800W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPR0854FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 54V 800W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPR0854FPXXXZ01A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 14.8 A |
| Efficiency | 88 % |
| Features | PMBus™, I2C Interface, Remote Sense, PFC, Load Sharing, Universal Input, Remote On/Off, Standby Output, Hot Swappable |
| Minimum Load Required | False |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 800 W |
| Size / Dimension [x] | 226.8 mm |
| Size / Dimension [x] | 8.93 " |
| Size / Dimension [y] | 3.4 in |
| Size / Dimension [y] | 86.4 mm |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 39.9 mm |
| Type | Front End |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 413.20 | |
Description
General part information
MPR0854 Series
Front End AC DC Converters 1 Output 54V 90 ~ 264 VAC Input
