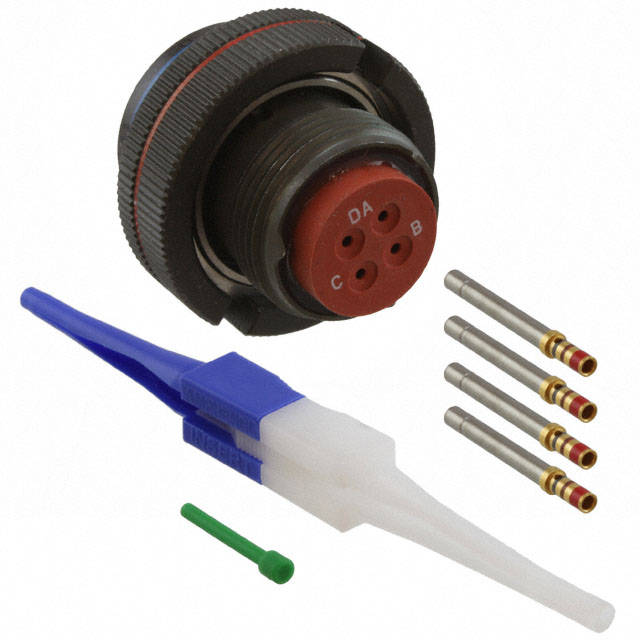

MS3459W14S-2S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3459W14S-2S

Applications	Aviation, Military, Automotive
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	Fluid Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	14S-2
Shielding	Unshielded
Termination	Crimp

Part	Grade	Shell Finish	Color	Shell Material	Connector Type	Number of Positions	Features	Shell Size - Insert	Primary Material	Termination	Contact Material	Shielding	Contact Finish - Mating	Orientation	Applications	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Qualification
Amphenol Aerospace Operations MS3459W14S-2S	Military	Olive Drab Cadmium	Olive Drab	Aluminum	Female Sockets Plug	4	Coupling Nut Self Locking	14S-2	Metal	Crimp	Copper Alloy	Unshielded	Gold	N	Automotive Aviation Military	Free Hanging (In-Line)	1.27 µm	50 µin	Fluid Resistant	-55 °C	347 °F	MIL-DTL-5015

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Plug, Female Sockets Crimp
