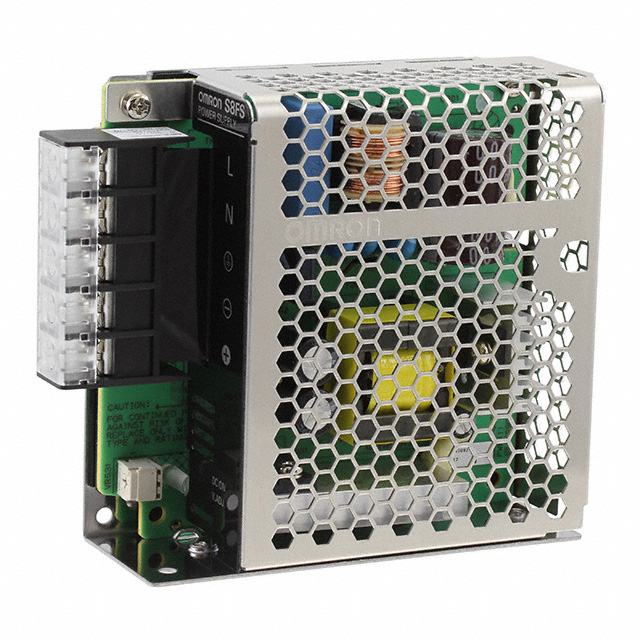

S8FS-G05012C

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 12V 50W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 12V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	S8FS-G05012C

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, UL, CE
Current - Output 1	4.3 A
Efficiency	86 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	50 W
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Applications	Input Type	Number of Outputs	Features	Voltage - Isolation	Current - Output (Max) [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Power (Watts)	Efficiency	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Mounting Type	Current - Output 1	Type
Omron Electronics Inc-EMC Div S8FS-G05005CD	ITE (Commercial)	AC	1	Adjustable Output Universal Input	3000 V	8 A	CE cURus TUV UL	97 mm	3.9 "	1.46 in	37.2 mm	99 mm	3.82 in	85 VAC	264 VAC	-20 °C	70 °C	5 V	40 W
Omron Electronics Inc-EMC Div S8FS-G05012CD	ITE (Commercial)	AC	1	Adjustable Output Universal Input	3000 V	4.3 A	CE cURus TUV UL	97 mm	3.9 "	1.46 in	37.2 mm	99 mm	3.82 in	85 VAC	264 VAC	-20 °C	70 °C	12 V	50 W	86 %
Omron Electronics Inc-EMC Div S8FS-G05015CD	Industrial ITE (Commercial)	AC or DC	1	Adjustable Output Universal Input	3000 V	3.5 A	CE cURus TUV UL	97 mm	3.9 "	1.46 in	37.2 mm	99 mm	3.82 in	85 VAC	264 VAC	-20 °C	70 °C	15 V	53 W	88 %	370 V	120 V
Omron Electronics Inc-EMC Div S8FS-G05012C	ITE (Commercial)		1	Adjustable Output DC Input Capable Universal Input	3000 V		CE cURus TUV UL	36 mm	3.9 "	3.82 in	97 mm	99 mm	1.42 in			-20 °C	70 °C	12 V	50 W	86 %			Chassis Mount	4.3 A	Enclosed
Omron Electronics Inc-EMC Div S8FS-G05024CD	ITE (Commercial)	AC	1	Adjustable Output Universal Input	3000 V	2.2 A	CE cURus TUV UL	97 mm	3.9 "	1.46 in	37.2 mm	99 mm	3.82 in	85 VAC	264 VAC	-20 °C	70 °C	24 V	50 W	89 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
