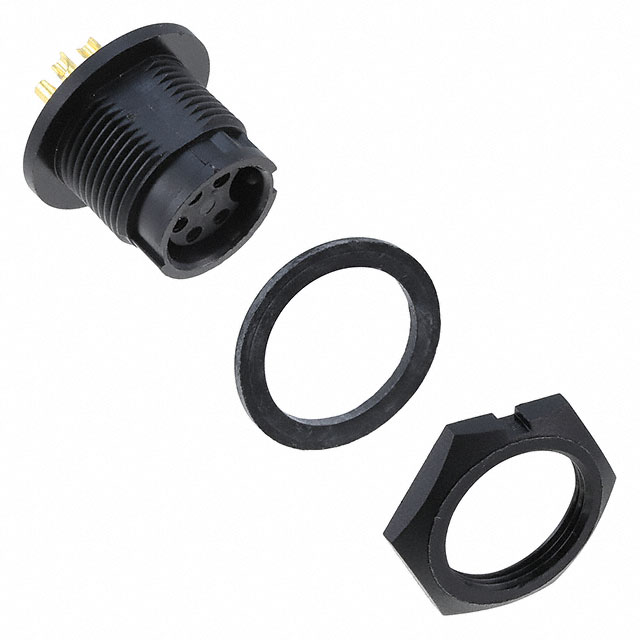

7282-5SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7282-5SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

Part	Contact Material	Backshell Material, Plating	Contact Finish - Mating	Applications	Ingress Protection	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Mounting Feature	Voltage Rating	Primary Material	Fastening Type	Current Rating (Amps)	Shielding	Color
Conxall/Switchcraft 7282-5SG-300	Brass	Nylon Polyamide (PA)	Gold	Automotive Communication Systems Instrumentation	Weathertight	Receptacle Female Sockets	-40 °C	115 °C	Keyed	Bulkhead - Front Side Nut	600 V	Plastic	Bayonet Lock	Varies by Wire Gauge	Unshielded	Black
