1003P4T1B1M1QEH

Active

E-Switch

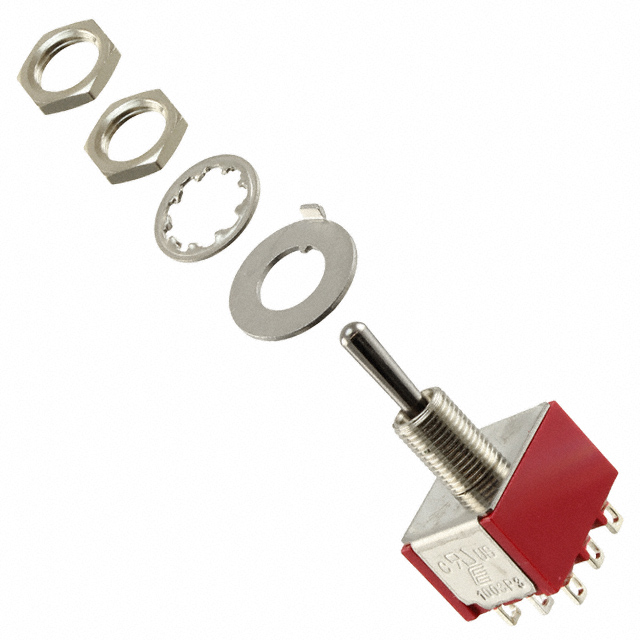

SWITCH TOGGLE 3PDT 5A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE 3PDT 5A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	1003P4T1B1M1QEH

Actuator Length [x]	10.41 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	3PDT
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Circuit	Actuator Type	Electrical Life	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Material	Actuator Length [x]	Bushing Thread	Termination Style	Switch Function	Illumination	Current Rating (Amps)
E-Switch 1003P4T7B13M1QE	3PDT	Standard Round	40000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	11.91 mm	120 V	Brass Chrome Plated	13 mm	15/32-32	Solder Lug	Mom-Off-Mom	Non-Illuminated	5 A
E-Switch 1003P4T1B1M1QEH	3PDT	Standard Round	40000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	0.25 in	120 V	Brass Chrome Plated	10.41 mm	1/4-40	Solder Lug	Mom-Off-Mom	Non-Illuminated	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch 3PDT Panel Mount
