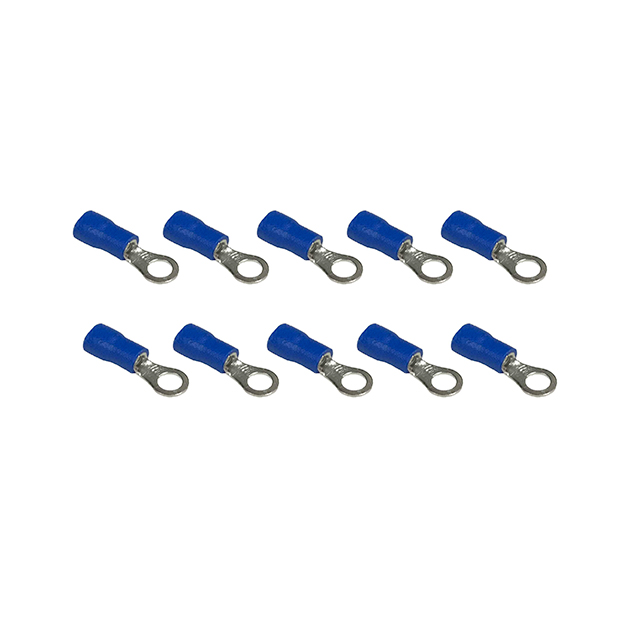

RVS2-5-10

Active

Remington Industries

RING TERMINALS, PVC INSULATED, 1

Search across all available documentation for this part.

Active

Remington Industries

RING TERMINALS, PVC INSULATED, 1

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall [x]	Length - Overall [x]	Color	Material - Insulation	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Stud/Tab Size	Thickness	Thickness	Terminal Type	Contact Finish	Termination	Contact Material	Stud/Tab Size	Length - Overall	Length - Overall
Remington Industries RVS2-4-10	0.701 in	17.81 mm	Blue	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	6.6 mm	0.26 in	Insulated	8 Stud	0.81 mm	0.032 in	Circular	Tin	Crimp	Copper
Remington Industries RVS2-3.5-100	0.701 in	17.81 mm	Blue	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	5.5 mm	0.217 in	Insulated		0.81 mm	0.032 in	Circular	Tin	Crimp	Copper	6 Stud
Remington Industries RVS2-5-100			Blue	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	8.51 mm	0.335 in	Insulated		0.81 mm	0.032 in	Circular	Tin	Crimp	Copper	10 Stud	21.79 mm	0.858 in
Remington Industries RVS2-3.5-10	0.701 in	17.81 mm	Blue	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	5.5 mm	0.217 in	Insulated		0.81 mm	0.032 in	Circular	Tin	Crimp	Copper	6 Stud
Remington Industries RVS2-5-10			Blue	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	8.51 mm	0.335 in	Insulated		0.81 mm	0.032 in	Circular	Tin	Crimp	Copper	10 Stud	21.79 mm	0.858 in
Remington Industries RVS2-4-100	0.701 in	17.81 mm	Blue	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	6.6 mm	0.26 in	Insulated	8 Stud	0.81 mm	0.032 in	Circular	Tin	Crimp	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
