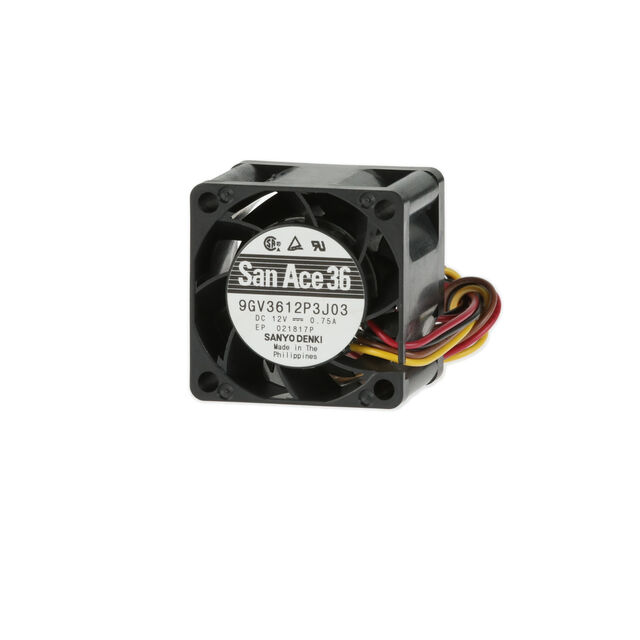

9GV3612P3J03
ActiveSanyo Denki America Inc.
FAN AXIAL 36X28MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9GV3612P3J03
ActiveSanyo Denki America Inc.
FAN AXIAL 36X28MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9GV3612P3J03 |
|---|---|
| Air Flow | 19.4 CFM |
| Air Flow | 0.543 m³/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 750 mA |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), PWM Control |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 58.5 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 9 W |
| RPM | 19000 RPM |
| Size / Dimension [x] | 36 mm |
| Size / Dimension [z] | 36 mm |
| Static Pressure | 525.1 Pa |
| Static Pressure | 2.108 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 0.102 lb |
| Weight | 46.27 g |
| Width [y] | 28 mm |
9GV3612 Series
| Part | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Power (Watts) | Noise | Material - Blade | Termination | Size / Dimension [x] | Size / Dimension [z] | RPM | Current Rating (Amps) | Approval Agency | Fan Type | Lifetime @ Temp. | Bearing Type | Voltage Range [Max] | Voltage Range [Min] | Static Pressure | Static Pressure | Air Flow | Air Flow | Weight | Weight | Width [y] | Voltage - Rated | Material - Frame | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanyo Denki America Inc. | -10 °C | -10 °C | 60 °C | 60 °C | 9 W | 58.5 dB | Plastic | 2 Wire Leads | 36 mm | 36 mm | 19000 RPM | 750 mA | CSA TUV UL | Tubeaxial | 40000 Hrs | Ball | 13.2 VDC | 7 V | 525.6 Pa | 2.11 in H2O | 19.4 CFM | 0.543 m³/min | 0.102 lb | 46.27 g | 28 mm | 12 VDC | Plastic | ||
Sanyo Denki America Inc. | -20 C | -20 °C | 60 °C | 52 dB | Plastic | 3 Wire Leads | 36 mm | 36 mm | 14000 RPM | 0.34 A | CSA TUV UL | Tubeaxial | 40000 Hrs | Ball | 13.2 VDC | 7 V | 275 Pa | 1.104 in H2O | 0.102 lb | 46.27 g | 28 mm | 12 VDC | Plastic | 60 °C | Locked Rotor Sensor | ||||
Sanyo Denki America Inc. | -10 °C | -10 °C | 60 °C | 60 °C | 4.1 W | 52 dB | Plastic | 2 Wire Leads | 36 mm | 36 mm | 14000 RPM | 0.34 A | CSA TUV UL | Tubeaxial | 40000 Hrs | Ball | 13.2 VDC | 7 V | 274 Pa | 1.1 in H2O | 0.102 lb | 46.27 g | 28 mm | 12 VDC | Plastic | ||||
Sanyo Denki America Inc. | -20 C | -20 °C | 60 °C | 52 dB | Plastic | 3 Wire Leads | 36 mm | 36 mm | 14000 RPM | 0.34 A | CSA TUV UL | Tubeaxial | 40000 Hrs | Ball | 13.2 VDC | 7 V | 275 Pa | 1.104 in H2O | 0.101 lb | 45.81 g | 28 mm | 12 VDC | Plastic | 60 °C | Speed Sensor (Tach) | ||||
Sanyo Denki America Inc. | -20 C | -20 °C | 60 °C | 9 W | 58.5 dB | Plastic | 3 Wire Leads | 36 mm | 36 mm | 19000 RPM | 750 mA | CSA TUV UL | Tubeaxial | 40000 Hrs | Ball | 13.2 VDC | 7 V | 525.1 Pa | 2.108 in H2O | 19.4 CFM | 0.543 m³/min | 0.102 lb | 46.27 g | 28 mm | 12 VDC | Plastic | 60 °C | Locked Rotor Sensor | |
Sanyo Denki America Inc. | -10 °C | -10 °C | 60 °C | 60 °C | 9 W | 58.5 dB | Plastic | 4 Wire Leads | 36 mm | 36 mm | 19000 RPM | 750 mA | CSA TUV UL | Tubeaxial | 40000 Hrs | Ball | 13.2 VDC | 7 V | 525.1 Pa | 2.108 in H2O | 19.4 CFM | 0.543 m³/min | 0.102 lb | 46.27 g | 28 mm | 12 VDC | Plastic | PWM Control Speed Sensor (Tach) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.60 | |
| 10 | $ 17.75 | |||
| 25 | $ 16.70 | |||
| 50 | $ 16.06 | |||
| 140 | $ 14.80 | |||
| 280 | $ 13.84 | |||
| 560 | $ 13.63 | |||
Description
General part information
9GV3612 Series
Fan Tubeaxial 12VDC Square - 36mm L x 36mm H Ball 19.4 CFM (0.543m³/min) 4 Wire Leads
