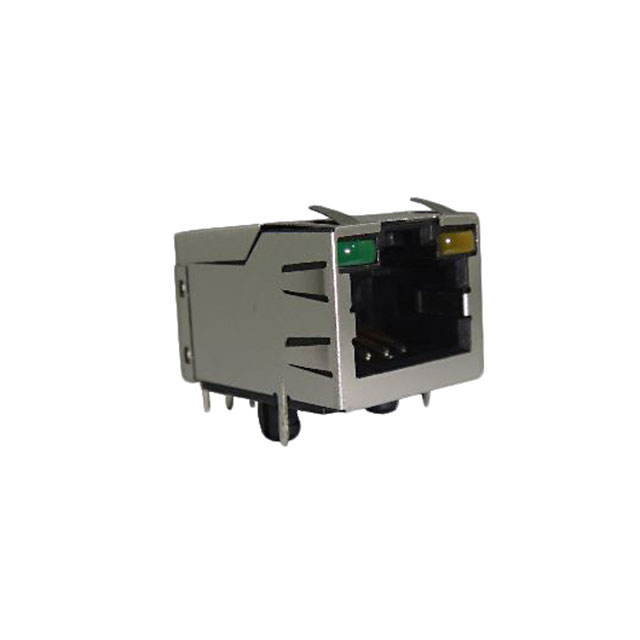

RJE60-188-54A1

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8PC8PC R/A SHIELDE

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8PC8PC R/A SHIELDE

Technical Specifications

Parameters and characteristics for this part

Specification	RJE60-188-54A1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat6
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Termination	Orientation	Contact Finish	Number of Positions/Contacts	Shielding	Housing Material	Number of Rows	Connector Type	Contact Material	Tab Direction	LED Color	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ratings
Amphenol ICC (Commercial Products) RJE60-188-5411	Solder	90 °	Gold	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	1	Jack	Copper Alloy	Up	Yellow - Green	50 µin	1.27 µm	1	85 °C	-40 °C	Through Hole	Cat6
Amphenol ICC (Commercial Products) RJE60-188-54A1	Solder	90 °	Gold	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	1	Jack	Copper Alloy	Up	Green Yellow	50 µin	1.27 µm	1	85 °C	-40 °C	Through Hole	Cat6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat6
