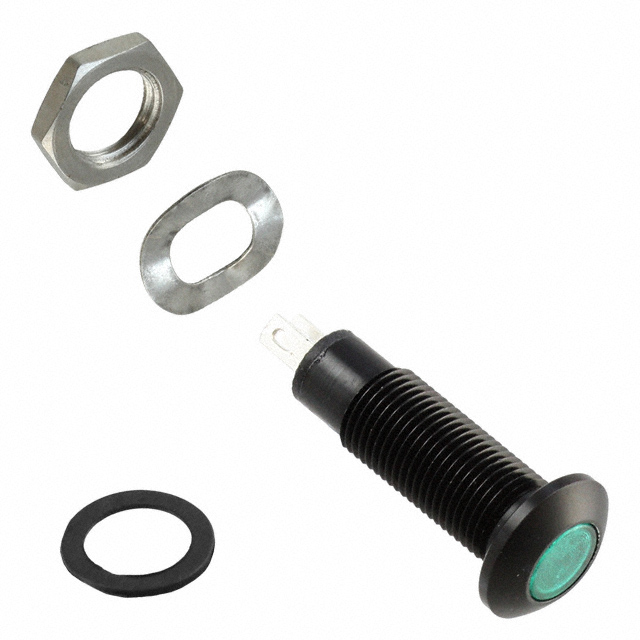

PM5-A7G28V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM 8.1MM GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM5-A7G28V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM 8.1MM GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-A7G28V |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 7 mm |
| Lens Transparency | Fresnel |
| Millicandela Rating | 800 mcd |
| Panel Cutout Dimensions | 8.13 mm |
| Panel Cutout Dimensions | 0.32 in |
| Panel Cutout Shape | Round |
| Ratings | AC/DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage [Max] | 28 V |
| Voltage [Min] | 12 V |
| Wavelength - Peak | 515 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 35.13 | |
Description
General part information
PM5-A7G28 Series
LED Panel Indicator Green Fresnel 120° 12V ~ 28V 20mA Quick Connect - 0.110" (2.8mm)
