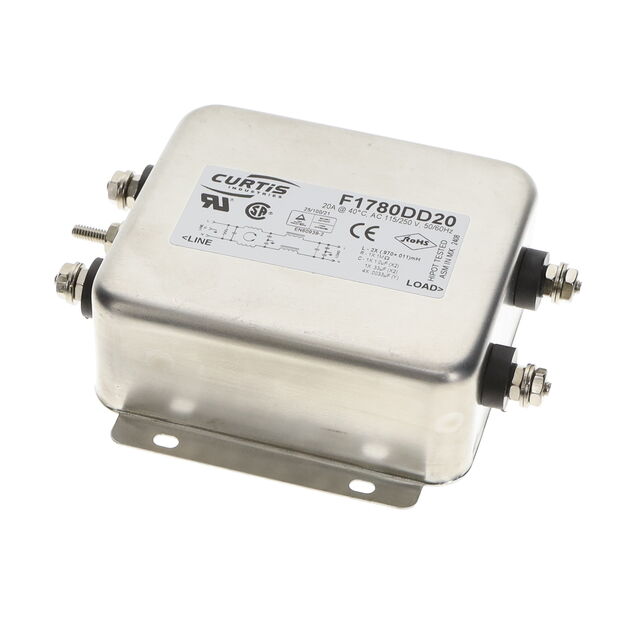

F1780DD20
ActiveCurtis Industries
LINE FILTER 250VAC 20A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F1780DD20
ActiveCurtis Industries
LINE FILTER 250VAC 20A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F1780DD20 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, CSA, TUV |
| Configuration | Single Stage |
| Current | 20 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Termination Style | Threaded Post (8-32) |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 72.86 | |
| 10 | $ 70.43 | |||
| 30 | $ 68.00 | |||
| 50 | $ 65.57 | |||
| 100 | $ 60.11 | |||
Description
General part information
F1780D Series
Single Phase EMC/EMI Line Filter 20 A 250V 50/60Hz Single Stage Threaded Post (8-32)
