NSD10-12D15

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-15V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NSD10-12D15

Active

MEAN WELL USA Inc.

DC DC CONVERTER +/-15V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NSD10-12D15

Applications	ITE (Commercial)
Current - Output (Max)	330 mA
Current - Output (Max)	330 mA
Efficiency	77 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	6-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.41 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9.8 V
Voltage - Isolation	1000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

NSD10 Series

Part	Features	Applications	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Mounting Type	Efficiency	Type	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Isolation	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]
MEAN WELL USA Inc. NSD10-48D5	OCP OVP Remote On/Off SCP	ITE (Commercial)	1 A	1 A	10 W	Through Hole	78 %	Isolated Module	-5 V	-25 °C	70 °C	2	1000 V	72 V	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	22 V	6-DIP Module	5 V
MEAN WELL USA Inc. NSD10-12D12	OCP OVP Remote On/Off SCP	ITE (Commercial)	420 mA	420 mA	10 W	Through Hole	77 %	Isolated Module	-12 V	-25 °C	70 °C	2	1000 V	36 V	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	9.8 V	6-DIP Module	12 V
MEAN WELL USA Inc. NSD10-12D5	OCP OVP Remote On/Off SCP	ITE (Commercial)	1 A	1 A	10 W	Through Hole	76 %	Isolated Module	-5 V	-25 °C	70 °C	2	1000 V	36 V	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	9.8 V	6-DIP Module	5 V
MEAN WELL USA Inc. NSD10-48S3	OCP OVP Remote On/Off SCP	ITE (Commercial)			8.3 W	Through Hole	74 %	Isolated Module		-25 °C	70 °C	1	1000 V	72 V	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	22 V	6-DIP Module	3.3 V	2.5 A
MEAN WELL USA Inc. NSD10-48S15	OCP OVP Remote On/Off SCP	ITE (Commercial)			10 W	Through Hole	80 %	Isolated Module		-25 °C	70 °C	1	1000 V	72 V	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	22 V	6-DIP Module	15 V	670 mA
MEAN WELL USA Inc. NSD10-48S9	OCP OVP Remote On/Off SCP	ITE (Commercial)			10 W	Through Hole	78 %	Isolated Module		-25 °C	70 °C	1	1000 V	72 V	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	22 V	6-DIP Module	9 V
MEAN WELL USA Inc. NSD10-12S9	OCP OVP Remote On/Off SCP	ITE (Commercial)			10 W	Through Hole	78 %	Isolated Module		-25 °C	70 °C	1	1000 V	36 V	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	9.8 V	6-DIP Module	9 V
MEAN WELL USA Inc. NSD10-12D15	OCP OVP Remote On/Off SCP	ITE (Commercial)	330 mA	330 mA	10 W	Through Hole	77 %	Isolated Module	-15 V	-25 °C	70 °C	2	1000 V	36 V	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	9.8 V	6-DIP Module	15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.88
		5	$ 14.03
		10	$ 13.68

Description

General part information

NSD10 Series

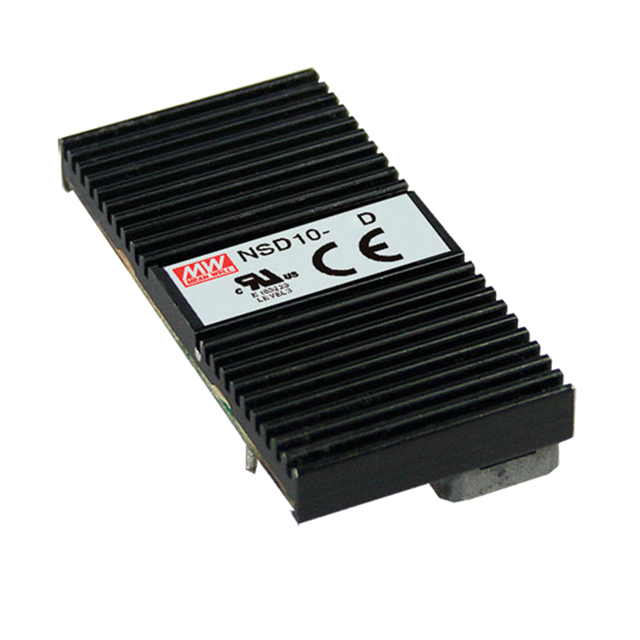

Isolated Module DC DC Converter 2 Output 15V -15V 330mA, 330mA 9.8V - 36V Input
