355-28-20-GR-00012

Obsolete

CnC Tech, LLC

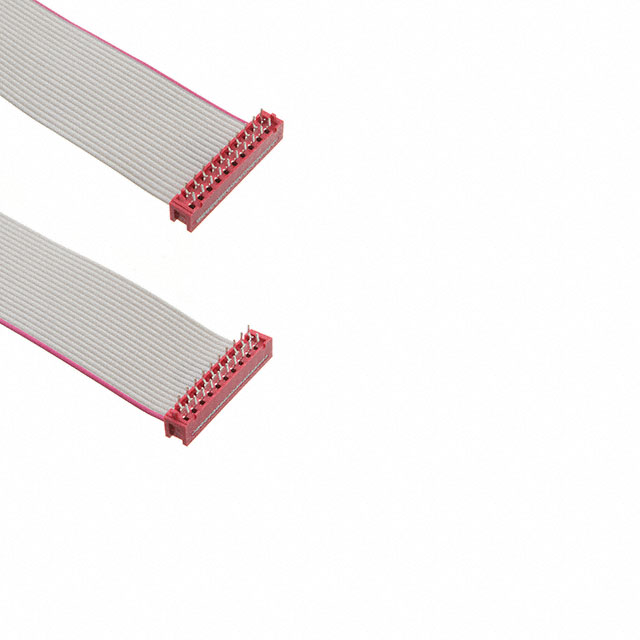

CABLE ASSY DIP IDC 20POS 12"

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CABLE ASSY DIP IDC 20POS 12"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Positions	Pitch - Cable	Pitch - Cable	Number of Rows	Length	Length	Cable Termination	Contact Finish	Pitch - Connector	Pitch - Connector	Number of Positions	Length [x]	Length [x]
CnC Tech, LLC 355-28-24-GR-00012	DIP Header Ribbon Cable	24	0.05 "	1.27 mm	2	1 ft	304.8 mm	IDC	Tin	0.1 in	2.54 mm
CnC Tech, LLC 355-28-16-GR-00018	DIP Header Ribbon Cable		0.05 "	1.27 mm	2			IDC	Tin	0.1 in	2.54 mm	16	457.2 mm	1.5 ft
CnC Tech, LLC 355-28-08-GR-00018	DIP Header Ribbon Cable	8	0.05 "	1.27 mm	2			IDC	Tin	0.1 in	2.54 mm		457.2 mm	1.5 ft
CnC Tech, LLC 355-28-12-GR-00012	DIP Header Ribbon Cable	12	0.05 "	1.27 mm	2	1 ft	304.8 mm	IDC	Tin	0.1 in	2.54 mm
CnC Tech, LLC 355-28-08-GR-00012	DIP Header Ribbon Cable	8	0.05 "	1.27 mm	2	1 ft	304.8 mm	IDC	Tin	0.1 in	2.54 mm
CnC Tech, LLC 355-28-04-GR-00012	DIP Header Ribbon Cable	4	0.05 "	1.27 mm	2	1 ft	304.8 mm	IDC	Tin	0.1 in	2.54 mm
CnC Tech, LLC 355-28-10-GR-00012	DIP Header Ribbon Cable	10	0.05 "	1.27 mm	2	1 ft	304.8 mm	IDC	Tin	0.1 in	2.54 mm
CnC Tech, LLC 355-28-20-GR-00012	DIP Header Ribbon Cable	20	0.05 "	1.27 mm	2	1 ft	304.8 mm	IDC	Tin	0.1 in	2.54 mm
CnC Tech, LLC 355-28-26-GR-00018	DIP Header Ribbon Cable	26	0.05 "	1.27 mm	2			IDC	Tin	0.1 in	2.54 mm		457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Ribbon Cable, DIP Header 1.00' (304.80mm)
