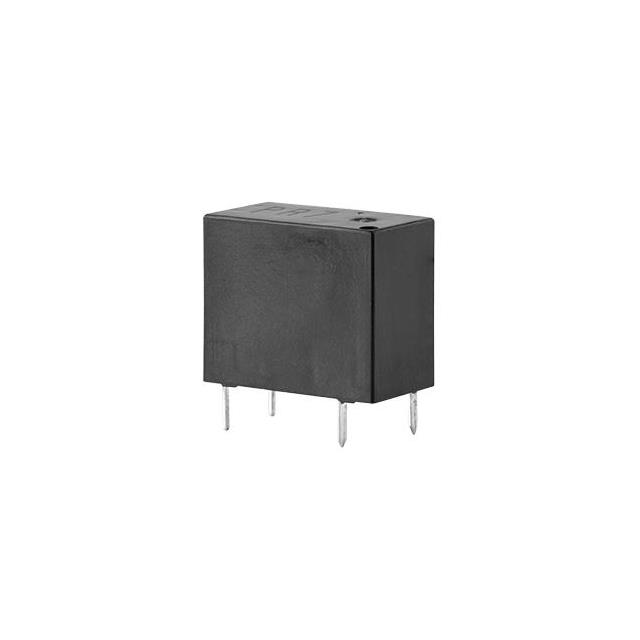

PR7-24V-200-1A
ActiveCUI Devices
RELAY GEN PURPOSE SPST 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR7-24V-200-1A
ActiveCUI Devices
RELAY GEN PURPOSE SPST 10A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR7-24V-200-1A |
|---|---|
| Coil Current | 8.3 mA |
| Coil Resistance | 2.88 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2770 VA, 300 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.41 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.05 | |||
| 300 | $ 0.94 | |||
| 500 | $ 0.88 | |||
| 1000 | $ 0.82 | |||
| 5000 | $ 0.79 | |||
Description
General part information
PR7-24V Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
