DG507AMWI/PR

Active

Analog Devices Inc./Maxim Integrated

IC SWITCH SP8TX2 400OHM 28SOIC

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC SWITCH SP8TX2 400OHM 28SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	DG507AMWI/PR

Channel Capacitance (CS(off), CD(off)) [custom]	6 pF
Channel Capacitance (CS(off), CD(off)) [custom]	6 pF
Channel-to-Channel Matching (ΔRon)	24 Ohm
Current - Leakage (IS(off)) (Max)	1 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	2
On-State Resistance (Max) [Max]	400 Ohm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

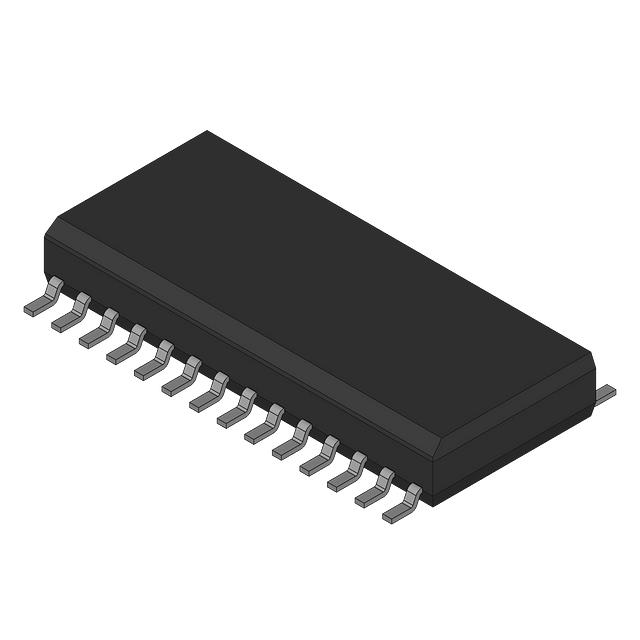

Package / Case	28-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Supplier Device Package	28-SOIC
Switch Circuit	SP8T - Open/Closed
Switch Time (Ton, Toff) (Max) [custom]	400 ns
Switch Time (Ton, Toff) (Max) [custom]	1 µs
Voltage - Supply, Dual (V±) [Max]	18 V
Voltage - Supply, Dual (V±) [Min]	-4.5 V

Part	Number of Circuits	Package / Case	Package / Case [x]	Package / Case [y]	Mounting Type	Current - Leakage (IS(off)) (Max)	Supplier Device Package	On-State Resistance (Max) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Multiplexer/Demultiplexer Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Channel-to-Channel Matching (ΔRon)	Switch Circuit
Analog Devices Inc./Maxim Integrated DG507ACWI+T	2	28-SOIC	0.295 in	7.5 mm	Surface Mount	5 nA	28-SOIC	450 Ohm	400 ns	1 µs	18 V	-4.5 V	6 pF	45 pF	8:1	70 °C	0 °C
Analog Devices Inc./Maxim Integrated DG507ACJ+	2	28-DIP			Through Hole	5 nA	28-PDIP	450 Ohm	400 ns	1 µs	18 V	-4.5 V	6 pF	45 pF	8:1	70 °C	0 °C	0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DG507AMWI/PR	2	28-SOIC	0.295 in	7.5 mm	Surface Mount	1 nA	28-SOIC	400 Ohm	400 ns	1 µs	18 V	-4.5 V	6 pF	6 pF	8:1	125 °C	-55 °C			24 Ohm	SP8T - Open/Closed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15	$ 20.43

General part information

2 Circuit IC Switch 8:1 400Ohm 28-SOIC

Technical documentation and resources

No documents available
