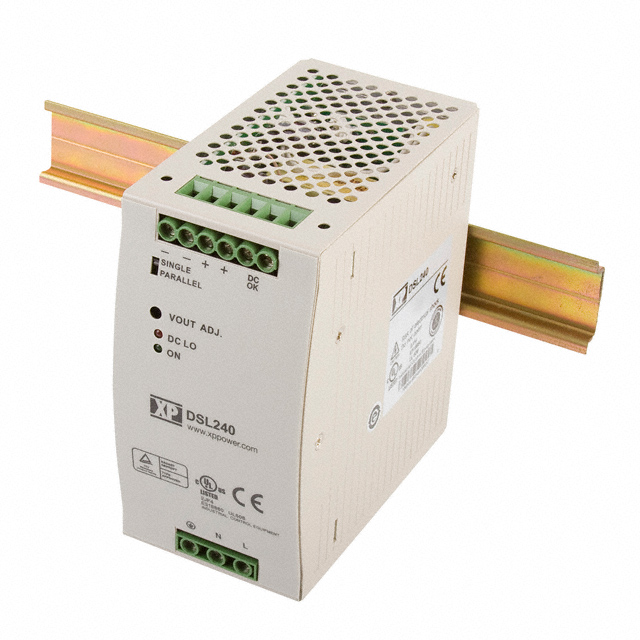

DSL240PS12-I

Active

XP POWER

AC/DC DIN RAIL SUPPLY 12V 192W

Search across all available documentation for this part.

Active

XP POWER

AC/DC DIN RAIL SUPPLY 12V 192W

Technical Specifications

Parameters and characteristics for this part

Specification	DSL240PS12-I

AC Voltage - Input [Max] [custom]	264 VAC
AC Voltage - Input [Min] [custom]	88 VAC
Applications	ITE (Commercial)
Approval Agency	CE, TUV, cULus
Current - Output (Max) [Max]	16 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Power (Watts)	192 W
Size / Dimension [x]	4.59 in
Size / Dimension [x]	116.6 mm
Size / Dimension [y]	64 mm
Size / Dimension [y]	2.52 "
Size / Dimension [z]	143.5 mm
Size / Dimension [z]	5.65 in
Standard Number	62368-1
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Number of Outputs	AC Voltage - Input [Min] [custom]	AC Voltage - Input [Max] [custom]	Current - Output (Max) [Max]	Efficiency	Minimum Load Required	Features	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Standard Number	Power (Watts)	Applications	Approval Agency	Input Type	Voltage - Isolation
XP POWER DSL240PS24-I	1	88 VAC	264 VAC	10 A	93 %		Adjustable Output Load Sharing Universal Input	24 V	143.5 mm	5.65 in	64 mm	2.52 "	4.59 in	116.6 mm	62368-1	240 W	ITE (Commercial)	CE cULus TUV	AC	3000 V
XP POWER DSL240PS12-I	1	88 VAC	264 VAC	16 A	90 %		Adjustable Output Load Sharing Universal Input	12 V	143.5 mm	5.65 in	64 mm	2.52 "	4.59 in	116.6 mm	62368-1	192 W	ITE (Commercial)	CE cULus TUV	AC	3000 V
