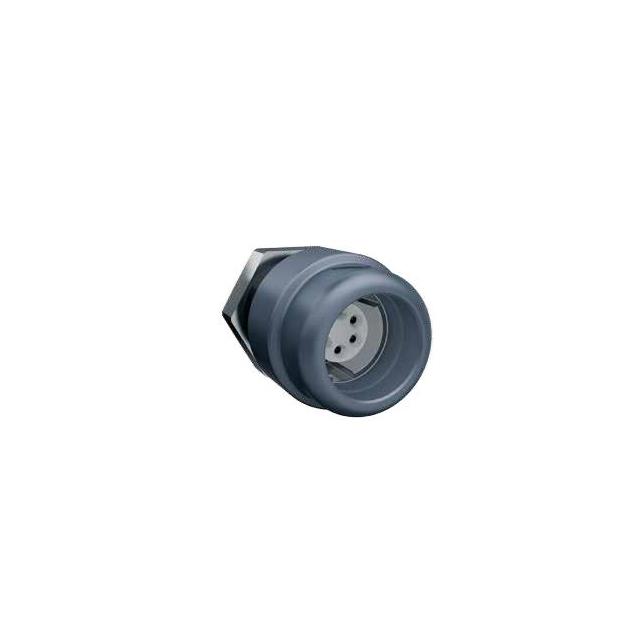

756-199-402-000-000

Active

ODU

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

ODU

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	756-199-402-000-000

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-15 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded

Part	Contact Material	Contact Finish - Mating	Orientation	Applications	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Shielding	Connector Type	Primary Material	Ingress Protection	Mounting Feature
ODU 756-199-404-000-000	Copper Alloy	Gold	Keyed	Industrial Measurement Medical Testing Equipment	Push-Pull	80 C	-15 °C	Gray	2	Unshielded	Receptacle Female Sockets	Plastic	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut
ODU 756-199-400-000-000	Copper Alloy	Gold	Keyed	Industrial Measurement Medical Testing Equipment	Push-Pull	80 C	-15 °C	Gray	6	Unshielded	Receptacle Female Sockets	Plastic	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut
ODU 756-199-403-000-000	Copper Alloy	Gold	Keyed	Industrial Measurement Medical Testing Equipment	Push-Pull	80 C	-15 °C	Gray		Unshielded	Receptacle Female Sockets	Plastic	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut
ODU 756-199-402-000-000	Copper Alloy	Gold	Keyed	Industrial Measurement Medical Testing Equipment	Push-Pull	80 C	-15 °C	Gray	4	Unshielded	Receptacle Female Sockets	Plastic	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut
ODU 756-199-401-000-000	Copper Alloy	Gold	Keyed	Industrial Measurement Medical Testing Equipment	Push-Pull	80 C	-15 °C	Gray		Unshielded	Receptacle Female Sockets	Plastic	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources
