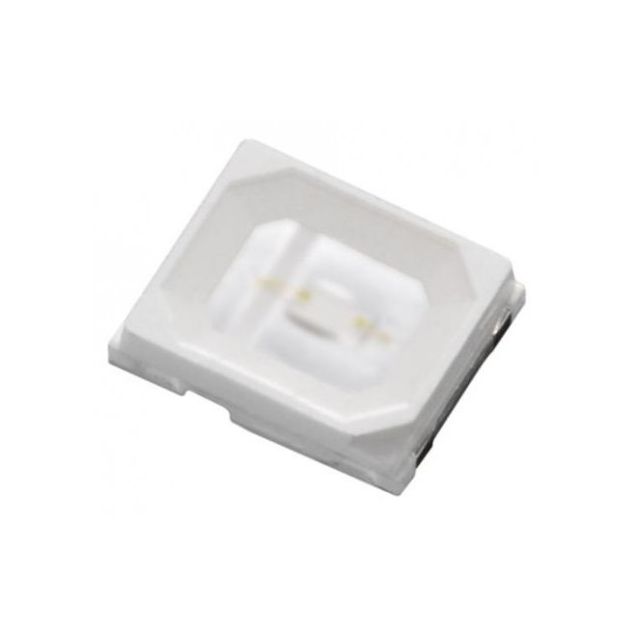

EAHP2835RA0
ActiveEverlight Electronics Co Ltd
LED EAHP2835 DEEP RED 2PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAHP2835RA0
ActiveEverlight Electronics Co Ltd
LED EAHP2835 DEEP RED 2PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAHP2835RA0 |
|---|---|
| Color | Red |
| Current - Max [Max] | 150 mA |
| Current - Test | 150 mA |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Luminous Flux @ Current/Temperature | 80 mW |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.25 V |
| Wavelength | 665 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.96 | |
| 10 | $ 0.63 | |||
| 100 | $ 0.41 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.96 | ||
| 10 | $ 0.63 | |||
| 100 | $ 0.41 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.30 | |||
| Tape & Reel (TR) | 4000 | $ 0.27 | ||
Description
General part information
EAHP2835 Series
LED Lighting Color EAHP2835 Red 665nm (650nm ~ 680nm) 1411 (3528 Metric)
