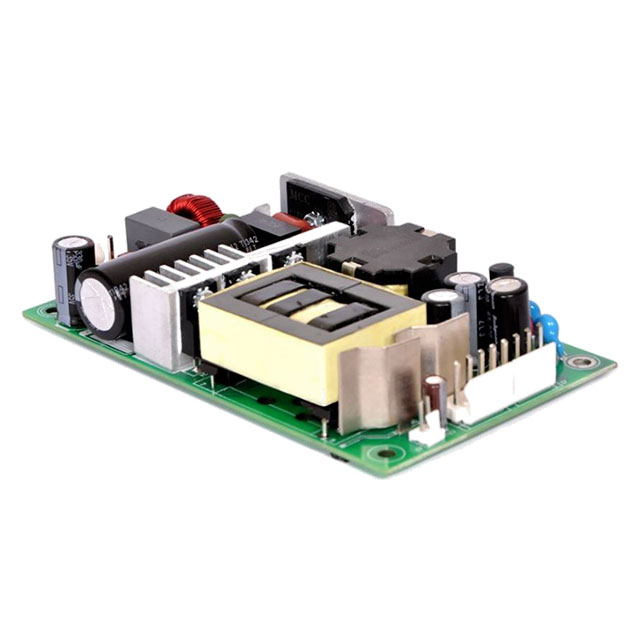

MBC350-1T15L

Obsolete

EOS Power India Private Ltd

POWER SUPPLY;MBC350-1T15L;AC-DC;

Deep-Dive with AI

Search across all available documentation for this part.

MBC350-1T15L

Obsolete

EOS Power India Private Ltd

POWER SUPPLY;MBC350-1T15L;AC-DC;

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MBC350-1T15L

Applications	Medical
Approval Agency	UL, cUL, CE, NEMKO
Current - Output 1	12 A
Efficiency	92 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	180 W
Power (Watts)	350 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

MBC350 Series

Part	Efficiency	Current - Output 1	Mounting Type	Type	Features	Approval Agency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Power (Watts)	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Applications	Voltage - Input [Min]	Voltage - Input [Max]
EOS Power India Private Ltd MBC350-1T12L	92 %	15 A	Chassis Mount	Open Frame	Adjustable Output DC Input Capable PFC Standby Output Universal Input	CE	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	350 W	200 W	12 V	1	4000 V	Medical
EOS Power India Private Ltd MBC350-1T24L	93 %	8.33 A	Chassis Mount	Open Frame	Adjustable Output DC Input Capable PFC Standby Output Universal Input	CE	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	350 W	200 W	24 V	1	4000 V	Medical
EOS Power India Private Ltd MBC350-1T48L	94 %	4.17 A	Chassis Mount	Open Frame	Adjustable Output DC Input Capable PFC Standby Output Universal Input	CE	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	350 W	200 W	48 V	1	4000 V	Medical
EOS Power India Private Ltd MBC350-1024L	93 %	8.33 A	Chassis Mount	Open Frame	Adjustable Output DC Input Capable PFC Standby Output Universal Input	CE	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	350 W	200 W	24 V	1	4000 V	Medical
EOS Power India Private Ltd MBC350-1T15L	92 %	12 A	Chassis Mount	Open Frame	Adjustable Output PFC Standby Output Universal Input	CE cUL NEMKO UL	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	350 W	180 W	15 V	1	4000 V	Medical	90 VAC	264 VAC
EOS Power India Private Ltd MBC350-1T58L	94 %	3.45 A	Chassis Mount	Open Frame	Adjustable Output DC Input Capable PFC Standby Output Universal Input	CE	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	350 W	200 W		1	4000 V	Medical	90 VAC	264 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MBC350 Series

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
