8280-5PG-311

Active

Conxall/Switchcraft

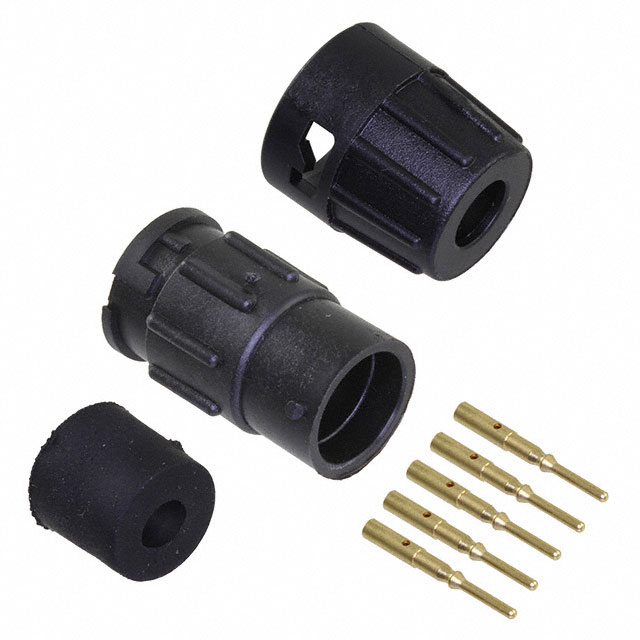

CONN RCPT MALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-5PG-311

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8280-5PG-311

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in
Cable Opening [diameter]	3.56 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

8280-5PG Series

Part	Ingress Protection	Connector Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shielding	Voltage Rating	Features	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Termination	Color	Orientation	Mounting Type	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8280-5PG-321	Weathertight	Male Pins Receptacle	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Nylon Polyamide (PA)	Plastic	5.33 mm	5.84 mm	0.21 in	0.23 in	Unshielded	600 V	Backshell	Gold	Brass	Varies by Wire Gauge	Crimp	Black	Keyed	Free Hanging (In-Line)	Bayonet Lock
Conxall/Switchcraft 8280-5PG-315	Weathertight	Male Pins Receptacle	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Nylon Polyamide (PA)	Plastic					Unshielded	600 V	Backshell	Gold	Brass	Varies by Wire Gauge	Crimp	Black	Keyed	Free Hanging (In-Line)	Bayonet Lock	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 8280-5PG-513	Weathertight	Male Pins Receptacle	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Nylon Polyamide (PA)	Plastic					Unshielded	600 V	Backshell	Gold	Brass	Varies by Wire Gauge	Crimp	Black	Keyed	Free Hanging (In-Line)	Bayonet Lock	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 8280-5PG-311	Weathertight	Male Pins Receptacle	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Nylon Polyamide (PA)	Plastic					Unshielded	600 V	Backshell	Gold	Brass	Varies by Wire Gauge	Crimp	Black	Keyed	Free Hanging (In-Line)	Bayonet Lock			2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 8280-5PG-522	Weathertight	Male Pins Receptacle	Automotive Communication Systems Instrumentation	-40 °C	115 °C	Nylon Polyamide (PA)	Plastic	5.59 mm		0.22 in	0.25 in	Unshielded	600 V	Backshell	Gold	Brass	Varies by Wire Gauge	Crimp	Black	Keyed	Free Hanging (In-Line)	Bayonet Lock						6.35 mm
