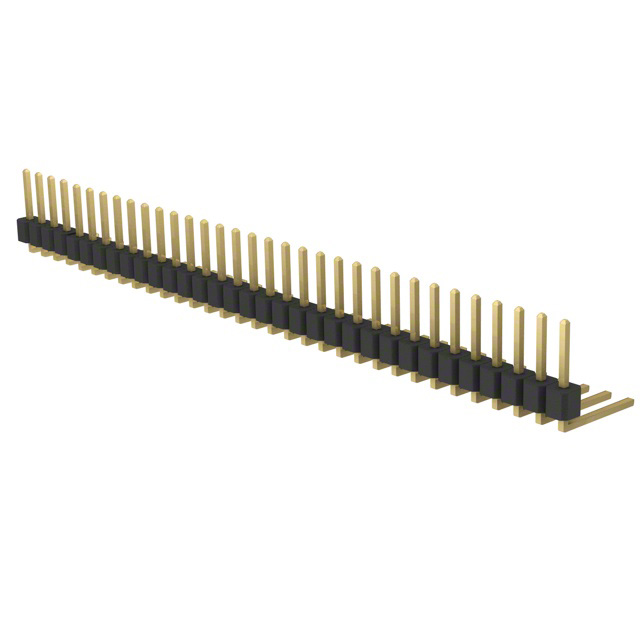

PRPC033SBCN-M71RC
ActiveSullins Connector Solutions
CONN HEADER R/A 33POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRPC033SBCN-M71RC
ActiveSullins Connector Solutions
CONN HEADER R/A 33POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC033SBCN-M71RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.32 in |
| Contact Length - Post [x] | 8.13 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 33 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC033 Series
| Part | Style | Insulation Material | Termination | Contact Type | Contact Finish Thickness - Mating | Number of Rows | Connector Type | Current Rating (Amps) | Fastening Type | Contact Shape | Contact Finish - Mating | Number of Positions Loaded | Insulation Color | Shrouding | Number of Positions | Contact Material | Mounting Type | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Contact Length - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Board to Board Cable | Polybutylene Terephthalate (PBT) | Solder | Male Pin | Flash | 1 | Breakaway Header | 3 A | Push-Pull | Square | Gold | All | Black | Unshrouded | 33 | Brass | Through Hole | 0.098 in | 2.5 mm | 0.1 in | 2.54 mm | 13.63 mm | 0.537 " | UL94 V-0 | -40 °C | 105 ░C | 0.318 " | 8.08 mm | Gold | 0.12 in | 3.05 mm | Flash | ||||||||
Sullins Connector Solutions | Board to Board Cable | Polybutylene Terephthalate (PBT) | Solder | Male Pin | Flash | 1 | Breakaway Header | 3 A | Push-Pull | Square | Gold | All | Black | Unshrouded | 33 | Brass | Through Hole Right Angle | 0.098 in | 2.5 mm | 0.1 in | 2.54 mm | UL94 V-0 | -40 °C | 105 ░C | 0.23 in | Gold | 0.12 in | 3.05 mm | Flash | 5.84 mm | ||||||||||
Sullins Connector Solutions | Board to Board Cable | Polybutylene Terephthalate (PBT) | Solder | Male Pin | Flash | 2 | Breakaway Header | 3 A | Push-Pull | Square | Gold | All | Black | Unshrouded | 66 | Brass | Through Hole Right Angle | 0.1 in | 2.54 mm | UL94 V-0 | -40 °C | 105 ░C | 0.23 in | Gold | 0.12 in | 3.05 mm | Flash | 5.84 mm | 2.54 mm | 0.1 in | 0.197 in | 5 mm | ||||||||
Sullins Connector Solutions | Board to Board Cable | Polybutylene Terephthalate (PBT) | Solder | Male Pin | Flash | 2 | Breakaway Header | 3 A | Push-Pull | Square | Gold | All | Black | Unshrouded | 66 | Brass | Through Hole | 0.098 in | 2.5 mm | 0.1 in | 2.54 mm | 16.17 mm | UL94 V-0 | -40 °C | 105 ░C | 0.318 " | 8.08 mm | Gold | Flash | 2.54 mm | 0.1 in | 0.22 in | 5.58 mm | 0.637 in | ||||||
Sullins Connector Solutions | Board to Board Cable | Polybutylene Terephthalate (PBT) | Solder | Male Pin | Flash | 2 | Breakaway Header | 3 A | Push-Pull | Square | Gold | All | Black | Unshrouded | 66 | Brass | Through Hole | 0.098 in | 2.5 mm | 0.1 in | 2.54 mm | 13.63 mm | 0.537 " | UL94 V-0 | -40 °C | 105 ░C | 0.318 " | 8.08 mm | Gold | 0.12 in | 3.05 mm | Flash | 2.54 mm | 0.1 in | ||||||
Sullins Connector Solutions | Board to Board Cable | Polybutylene Terephthalate (PBT) | Solder | Male Pin | Flash | 1 | Breakaway Header | 3 A | Push-Pull | Square | Gold | All | Black | Unshrouded | 33 | Brass | Through Hole Right Angle | 0.098 in | 2.5 mm | 0.1 in | 2.54 mm | UL94 V-0 | -40 °C | 105 ░C | 0.23 in | Gold | Flash | 5.84 mm | 0.22 in | 5.58 mm | ||||||||||
Sullins Connector Solutions | Board to Board Cable | Polybutylene Terephthalate (PBT) | Solder | Male Pin | Flash | 1 | Breakaway Header | 3 A | Push-Pull | Square | Gold | All | Black | Unshrouded | 33 | Brass | Through Hole Right Angle | 0.098 in | 2.5 mm | 0.1 in | 2.54 mm | UL94 V-0 | -40 °C | 105 ░C | 0.23 in | Gold | 0.32 in | 8.13 mm | Flash | 5.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.53 | |
| 10 | $ 1.17 | |||
| 100 | $ 0.90 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.70 | |||
| 5000 | $ 0.64 | |||
Description
General part information
PRPC033 Series
Connector Header Through Hole, Right Angle 33 position 0.100" (2.54mm)
Documents
Technical documentation and resources
