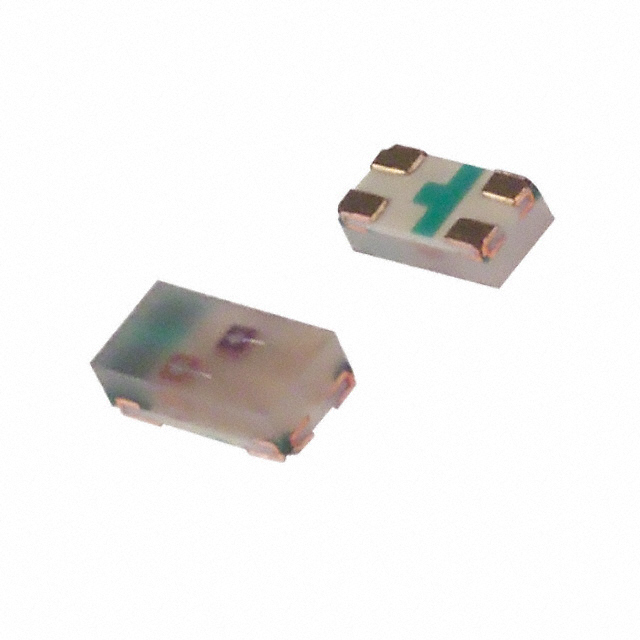

HSMF-C169
ActiveBroadcom Limited
LED AMBER/BLUE DIFFUSED 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
HSMF-C169
ActiveBroadcom Limited
LED AMBER/BLUE DIFFUSED 0603 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-C169 |
|---|---|
| Color | Blue, Amber |
| Configuration | Independent |
| Current - Test | 10 mA, 20 mA |
| Height (Max) [Max] [z] | 0.5 mm |
| Lens Color | White |
| Lens Size [x] | 1.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd, 90 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V, 1.9 V |
| Wavelength - Dominant | 470 nm, 592 nm |
| Wavelength - Peak | 468 nm, 595 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.02 | |
| 10 | $ 1.30 | |||
| 100 | $ 0.93 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.74 | |||
| 2000 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 2.02 | ||
| 10 | $ 1.30 | |||
| 100 | $ 0.93 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.74 | |||
| 2000 | $ 0.71 | |||
| Tape & Reel (TR) | 4000 | $ 0.68 | ||
| 8000 | $ 0.65 | |||
| 12000 | $ 0.64 | |||
Description
General part information
HSMF-C169 Series
Amber, Blue 592nm Amber, 470nm Blue LED Indication - Discrete 1.9V Amber, 3.4V Blue 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
