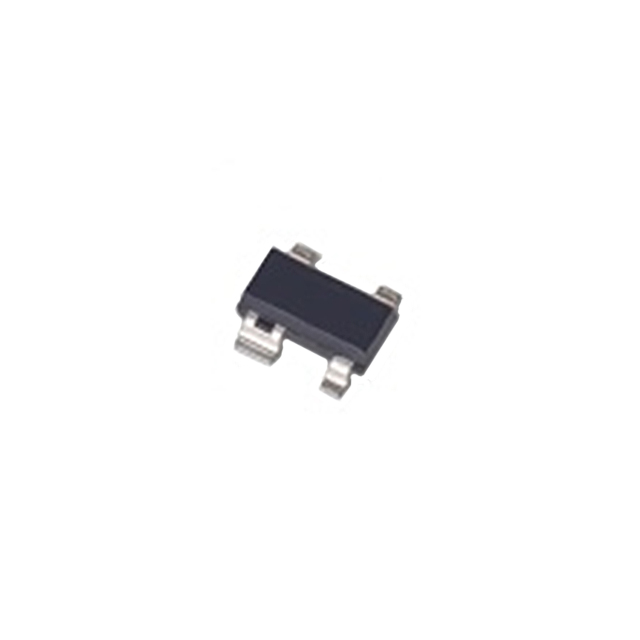

3N163 SOT-143 4L ROHS

Active

Linear Integrated Systems, Inc.

P-CHANNEL, SINGLE ENHANCEMENT MO

Search across all available documentation for this part.

Active

Linear Integrated Systems, Inc.

P-CHANNEL, SINGLE ENHANCEMENT MO

Technical Specifications

Parameters and characteristics for this part

Specification	3N163 SOT-143 4L ROHS

Current - Continuous Drain (Id) @ 25°C	50 mA
Drain to Source Voltage (Vdss)	40 V
FET Type	P-Channel
Input Capacitance (Ciss) (Max) @ Vds	3.5 pF
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Power Dissipation (Max) [Max]	350 mW
Rds On (Max) @ Id, Vgs [Max]	250 Ohm
Supplier Device Package	SOT-143-4
Technology	MOSFET (Metal Oxide)
Vgs (Max) [Max]	-6.5 V
Vgs(th) (Max) @ Id	5 V

Part	Package / Case	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Technology	Rds On (Max) @ Id, Vgs [Max]	Supplier Device Package	Drain to Source Voltage (Vdss)	Vgs (Max) [Max]	Mounting Type	FET Type
Linear Integrated Systems, Inc. 3N163 SOT-143 4L ROHS	TO-253-4 TO-253AA	5 V	3.5 pF	50 mA	350 mW	MOSFET (Metal Oxide)	250 Ohm	SOT-143-4	40 V	-6.5 V	Surface Mount	P-Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

P-Channel 40 V 50mA 350mW Surface Mount SOT-143-4
