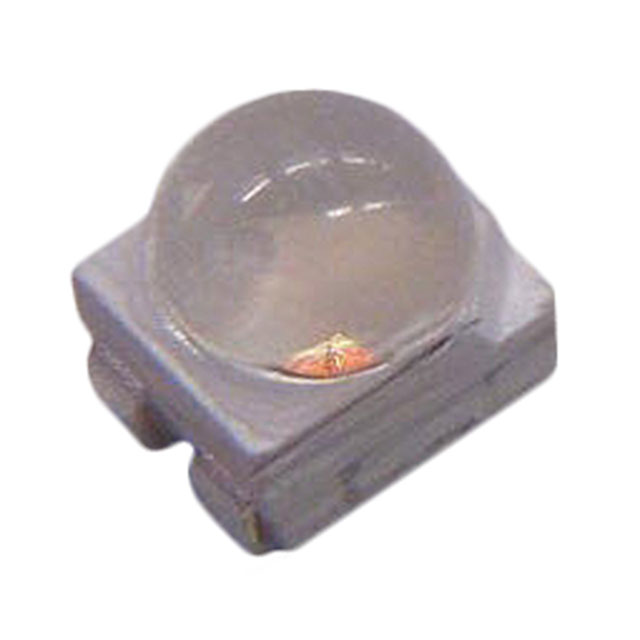

CLM2B-AEW-CYBB0263

Active

Cree LED

LED AMBER DIFFUSED 4PLCC SMD

Search across all available documentation for this part.

Active

Cree LED

LED AMBER DIFFUSED 4PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Current - Test	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Mounting Type	Millicandela Rating	Supplier Device Package	Wavelength - Dominant	Color	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Configuration	Height (Max) [Max]	Lens Size [diameter]
Cree LED CLM2B-ATW-CA0B0EF3	Diffused	50 mA	Round with Domed Top	2.8 mm	3.2 mm	4-PLCC	Surface Mount	7000 mcd	4-PLCC	591 nm	Amber	2.8 mm	3.2 mm	2.8 V	3.65 mm
Cree LED CLM2B-AEW-CZ0B0353	Diffused	50 mA	Round with Domed Top			4-SMD J-Lead	Surface Mount	6750 mcd	4-PLCC	591 nm	Amber			2.5 V		Standard	3.55 mm	2.6 mm
Cree LED CLM2B-RTW-CZ0B0BB3	Diffused	50 mA	Round with Domed Top	2.8 mm	3.2 mm	4-PLCC	Surface Mount	7000 mcd	4-PLCC	621 nm	Red	2.8 mm	3.2 mm	2.6 V	3.65 mm
Cree LED CLM2B-AEW-CYBB0263	Diffused	50 mA	Round with Domed Top			4-SMD J-Lead	Surface Mount	6275 mcd	4-PLCC	591 nm	Amber			2.5 V		Standard	3.55 mm	2.6 mm
Cree LED CLM2B-RTW-CA0B0BB3	Diffused	50 mA	Round with Domed Top	2.8 mm	3.2 mm	4-PLCC	Surface Mount	7000 mcd	4-PLCC	621 nm	Red	2.8 mm	3.2 mm	2.6 V	3.65 mm
Cree LED CLM2B-ATW-CZ0B0EF3	Diffused	50 mA	Round with Domed Top	2.8 mm	3.2 mm	4-PLCC	Surface Mount	7000 mcd	4-PLCC	591 nm	Amber	2.8 mm	3.2 mm	2.8 V	3.65 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amber 591nm LED Indication - Discrete 2.5V 4-SMD, J-Lead
