C146 10A064 005 2

Active

Amphenol Tuchel Industrial

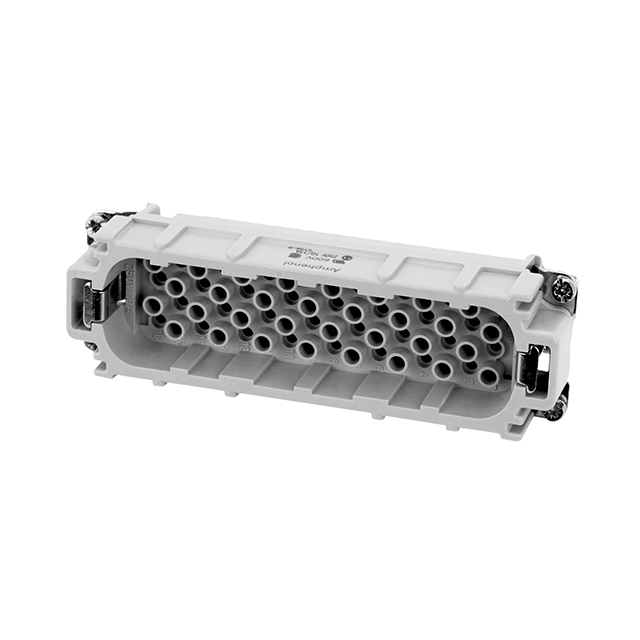

INSERT MALE 64POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 64POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10A064 005 2

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C146 D, C 16-3, M, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Male
Material Flammability Rating	UL94 V-0
Number of Positions	64+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Termination Style	Crimp
Voltage Rating	600 V

Part	Material Flammability Rating	Connector Type	Termination Style	Color	Gender	Size	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Current Rating (Amps)
Amphenol Tuchel Industrial C146 10A064 005 2	UL94 V-0	Insert without Contacts	Crimp	Gray	Male	E24	C 16-3 C146 D heavy\|mate® M	125 °C	-40 °C	64+Ground	600 V	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 16.82

General part information

Male Insert without Contacts Gray 64+Ground Position Crimp

Technical documentation and resources

No documents available
