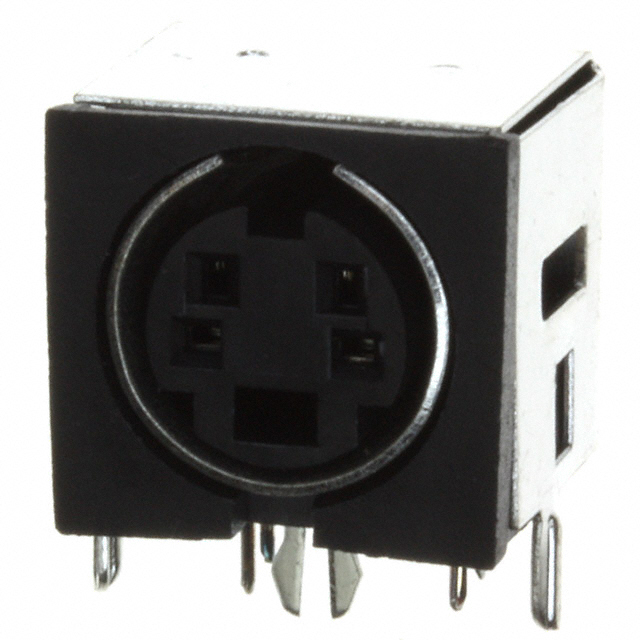

SMD4FRA121

Active

Switchcraft Inc.

CONN RCPT FMALE MINI DIN 4P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE MINI DIN 4P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	SMD4FRA121

Applications	Medical, Communication Systems, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Features	Ground, Board Lock
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Shell Size - Insert	Voltage Rating	Orientation	Contact Material	Termination	Features	Color	Number of Positions	Mounting Type	Fastening Type	Primary Material	Applications	Material Flammability Rating	Insert Material	Contact Finish - Mating	Connector Type	Shielding
Switchcraft Inc. SMD4FRA020	Mini DIN	12 V 100 VAC	Keyed	Copper Alloy	Solder	Board Lock Ground	Black	4	Through Hole Right Angle	Push-Pull	Plastic	Communication Systems Instrumentation Medical	UL94 V-0	Thermoplastic	Gold	Receptacle Female Sockets
Switchcraft Inc. SMD4FRA110	Mini DIN	12 V 100 VAC	Keyed	Copper Alloy	Solder	Ground	Black	4	Through Hole Right Angle	Push-Pull	Plastic	Communication Systems Instrumentation Medical	UL94 V-0	Thermoplastic	Silver	Receptacle Female Sockets
Switchcraft Inc. SMD4FRA121	Mini DIN	12 V 100 VAC	Keyed	Copper Alloy	Solder	Board Lock Ground	Silver	4	Through Hole Right Angle	Push-Pull	Plastic	Communication Systems Instrumentation Medical	UL94 V-0	Thermoplastic	Silver	Receptacle Female Sockets	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

No documents available
