TM7SM9MS9FS031C

Active

CarlisleIT

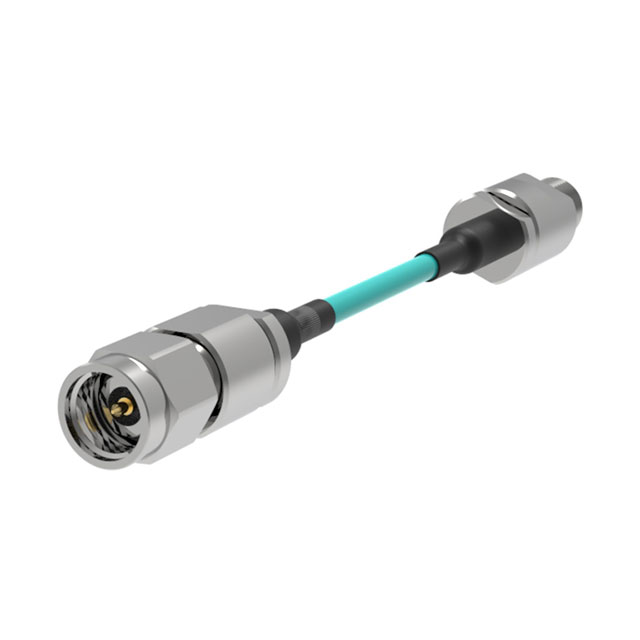

CBL ASSY 2.92MM PLUG TO JACK 12"

Search across all available documentation for this part.

Active

CarlisleIT

CBL ASSY 2.92MM PLUG TO JACK 12"

Technical Specifications

Parameters and characteristics for this part

Part	Color	1st Connector Mounting Type	2nd Connector	Cable Type	1st Connector	1st Connector	Style [Min]	Style [Max]	1st Contact Gender	Overall Impedance	Length	Length	2nd Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]
CarlisleIT TM7SM9FS9FS031C	Teal	Free Hanging (In-Line)	2.92 mm	1.98 mm	Jack	2.92 mm	2.92 mm	2.92 mm	Female	50 Ohms	12 "	304.8 mm	Female	Free Hanging (In-Line)	40 GHz	-50 °C	105 ░C
CarlisleIT TM7SM9FS9FS061C	Teal	Free Hanging (In-Line)	2.92 mm	1.98 mm	Jack	2.92 mm	2.92 mm	2.92 mm	Female	50 Ohms	24 "	609.6 mm	Female	Free Hanging (In-Line)	40 GHz	-50 °C	105 ░C
CarlisleIT TM7SM9MS9MS031C	Teal	Free Hanging (In-Line)	2.92 mm	1.98 mm	2.92mm Plug		2.92 mm	2.92 mm	Male	50 Ohms	12 "	304.8 mm	Male	Free Hanging (In-Line)	40 GHz	-50 °C	105 ░C
CarlisleIT TM7SM9MS9FS031C	Teal	Free Hanging (In-Line)	2.92 mm	1.98 mm	2.92mm Plug		2.92 mm	2.92 mm	Male	50 Ohms	12 "	304.8 mm	Female	Free Hanging (In-Line)	40 GHz	-50 °C	105 ░C
CarlisleIT TM7SS9MS9MS061C	Teal	Free Hanging (In-Line)	2.92 mm	1.98 mm	2.92mm Plug		2.92 mm	2.92 mm	Male	50 Ohms	24 "	609.6 mm	Male	Free Hanging (In-Line)	40 GHz	-50 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.69

General part information

Cable Assembly Coaxial 2.92mm to 2.92mm 1.98mm OD Coaxial Cable 12.00" (304.80mm)
