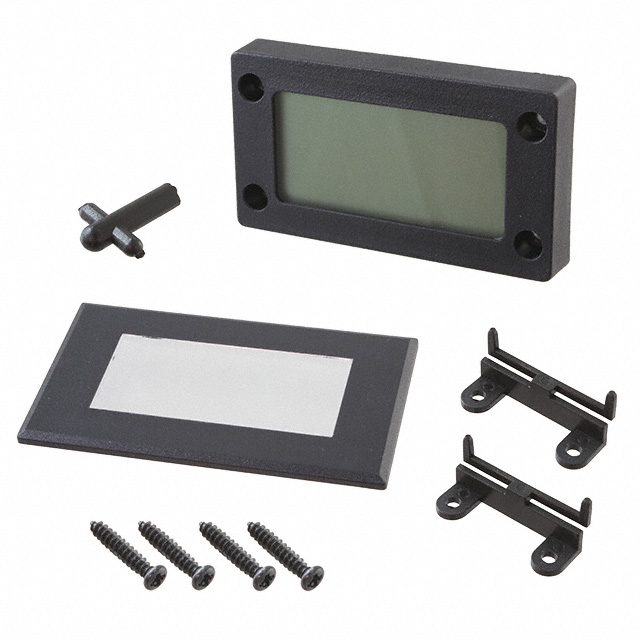

DPM 942-FPSI

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Search across all available documentation for this part.

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	DPM 942-FPSI

Display Characters - Height [y]	19 mm
Display Characters - Height [y]	0.748 in
Display Type	LCD - Black Characters, Green/Red Backlight
Measuring Type	Current
Number of Characters Per Row	3.5
Panel Cutout Dimensions [x]	72 mm
Panel Cutout Dimensions [y]	40 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Measuring Type	Termination Style	Type	Display Type	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Characters - Height [y]	Display Characters - Height [y]
Lascar Electronics DPM 942-FPSI	Current	Screw Terminal	Ammeter	LCD - Black Characters Green/Red Backlight	3.5	4.5 V	5.5 V	40 mm	72 mm	19 mm	0.748 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ammeter LCD - Black Characters, Green/Red Backlight Display Panel Mount
