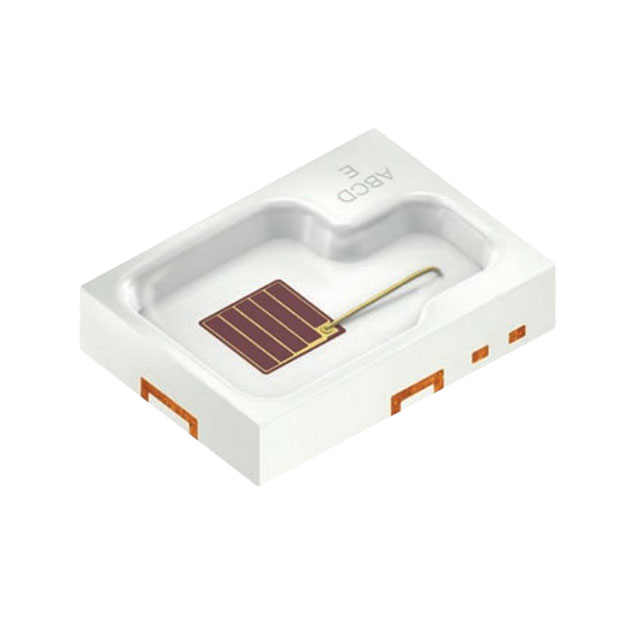

KR DMLQ31.23-CADA-1-1+JYKY-24-1-R18

LTB

ams-OSRAM USA INC.

LED SYNIOS RED 621NM SMD

Search across all available documentation for this part.

LTB

ams-OSRAM USA INC.

LED SYNIOS RED 621NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	KR DMLQ31.23-CADA-1-1+JYKY-24-1-R18

Color	Red
Current - Max [Max]	500 mA
Current - Test	350 mA
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Lumens/Watt @ Current - Test	92 lm/W
Luminous Flux @ Current/Temperature	75 lm
Mounting Type	Surface Mount
Package / Case	1108
Package / Case	2720
Size / Dimension [x]	2.75 mm
Size / Dimension [x]	0.108 "
Size / Dimension [y]	0.079 in
Size / Dimension [y]	2 mm
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.32 V
Wavelength	621 nm

Part	Current - Test	Wavelength	Supplier Device Package	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Color	Mounting Type	Lumens/Watt @ Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)
ams-OSRAM USA INC. KR DMLQ31.23-CADA-1-1+JYKY-24-1-R18	350 mA	621 nm	SMD	75 lm	2.75 mm	0.079 in	2 mm	0.108 "	500 mA	0.7 mm	0.028 in	1108	2720	Red	Surface Mount	92 lm/W	120 °	2.32 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color SYNIOS Red 621nm (Typ) 1108 (2720 Metric)

Technical documentation and resources

No documents available
