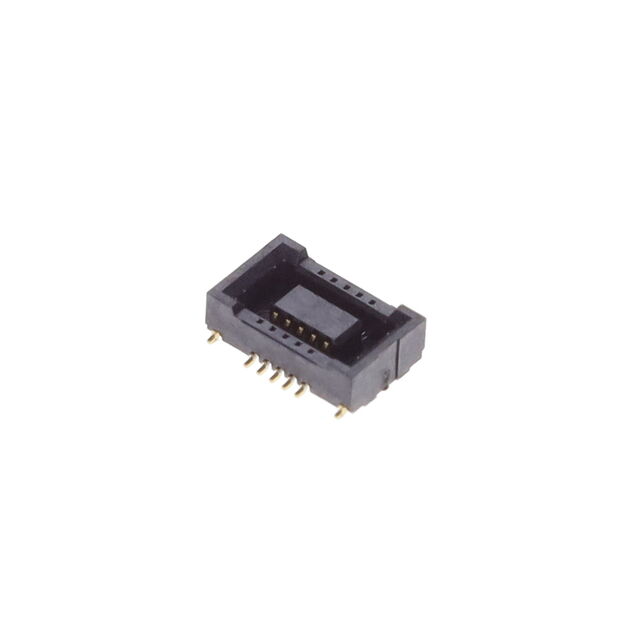

DF40TB-10DS-0.4V(51)
ActiveHirose Electric USA, Inc.
FPC TO BOARD CONNECTOR, 0.4MM PI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF40TB-10DS-0.4V(51)
ActiveHirose Electric USA, Inc.
FPC TO BOARD CONNECTOR, 0.4MM PI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF40TB-10DS-0.4V(51) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board [z] | 0.057 in |
| Height Above Board [z] | 1.45 mm |
| Mated Stacking Heights | 1.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| 2500 | $ 0.21 | |||
| Tape & Reel (TR) | 5000 | $ 0.21 | ||
| 10000 | $ 0.19 | |||
| 15000 | $ 0.19 | |||
| 25000 | $ 0.18 | |||
Description
General part information
DF40TB Series
10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
