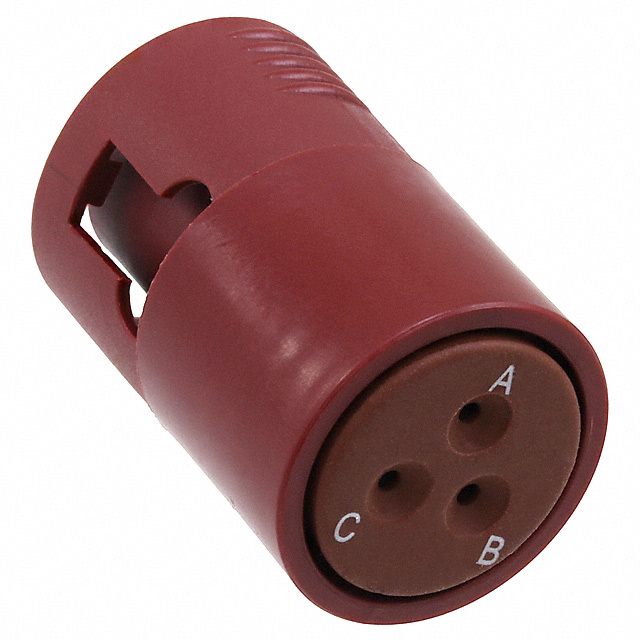

SJS816100

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 3POS INLINE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SJS816100

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Detent Lock
Housing Color	Red
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-55 °C
Orientation	A
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	11
Shielding	Unshielded
Type	For Female Sockets

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Shell Material	Note	Housing Color	Orientation	Shell Size - Insert	Contact Type	Ingress Protection	Material Flammability Rating	Mounting Type	Fastening Type	Contact Size	Shielding	Contact Shape	Connector Type
AMPHENOL PCD SJS816210	203 °F	-55 °C	For Male Pins	Polyamide (PA66) Nylon 6/6	Contacts Not Included	White	B	11	Crimp	IP67 - Dust Tight Waterproof	UL94 V-0	Free Hanging (In-Line)	Detent Lock	16	Unshielded	Circular	Receptacle Housing
AMPHENOL PCD SJS816100	203 °F	-55 °C	For Female Sockets	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Red	A	11	Crimp	IP67 - Dust Tight Waterproof	UL94 V-0	Free Hanging (In-Line)	Detent Lock	16	Unshielded	Circular	Plug Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug Housing Free Hanging (In-Line)
