Z86E8316VEC00TR

Obsolete

Zilog

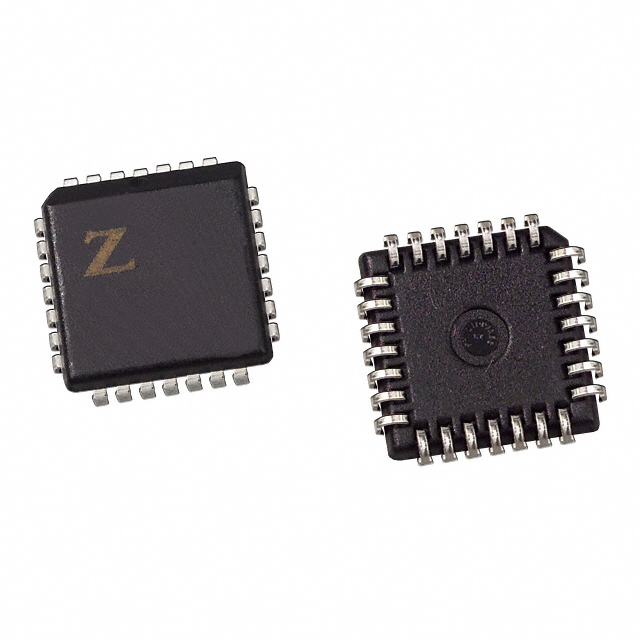

IC MCU 8BIT 4KB OTP 28PLCC

Search across all available documentation for this part.

Obsolete

Zilog

IC MCU 8BIT 4KB OTP 28PLCC

Technical Specifications

Parameters and characteristics for this part

Part	Program Memory Type	Core Processor	Core Size	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Oscillator Type	Data Converters	Speed	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Program Memory Size	RAM Size	Number of I/O	Peripherals	Package / Case [x]	Package / Case [y]
Zilog Z86E8316VEC	OTP	Z8	8-Bit	Surface Mount	105 °C	-40 °C	28-LCC (J-Lead)	Internal	A/D 8x8b	16 MHz	5.5 V	3.5 V	4 KB	237 x 8	21 I/O	POR WDT
Zilog Z86E8316VEC00TR	OTP	Z8	8-Bit	Surface Mount	105 °C	-40 °C	28-LCC (J-Lead)	Internal	A/D 8x8b	16 MHz	5.5 V	3.5 V	4 KB	237 x 8	21 I/O	POR WDT
Zilog Z86E8316SEG	OTP	Z8	8-Bit	Surface Mount	105 °C	-40 °C	28-SOIC	Internal	A/D 8x8b	16 MHz	5.5 V	3.5 V	4 KB	237 x 8	21 I/O	POR WDT	0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Z8 Z8® Microcontroller IC 8-Bit 16MHz 4KB (4K x 8) OTP
