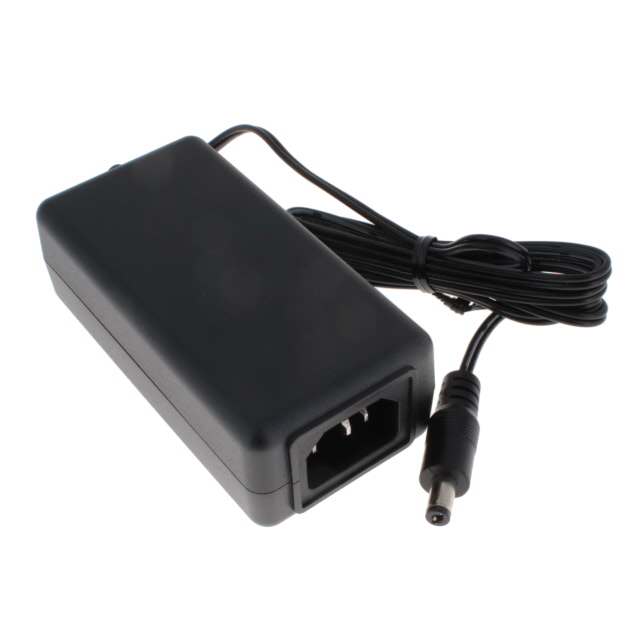

PPL18U-120

Active

Phihong USA

AC/DC DESKTOP ADAPTER 12V 19W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPL18U-120

Active

Phihong USA

AC/DC DESKTOP ADAPTER 12V 19W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPL18U-120

Applications	ITE (Commercial)
Approval Agency	IEC, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.6 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Power (Watts)	19 W
Region Utilized	International
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

PPL18U Series

Part	Polarization	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output	Applications	Region Utilized	Standard Number	Input Connector	Efficiency	Form	No Load Power Consumption	Cord Length	Cord Length	Power (Watts)	Approval Agency	Output Connector [z]	Output Connector [diameter]	Output Connector	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	No Load Power Consumption [Max]
Phihong USA PPL18U-050L6	Positive Center	40 °C	3 A	5 V	ITE (Commercial)	International	62368-1	IEC 320-C14	Level VI	Desktop (Class I)	100 mW	1.5 m	59 in	15 W	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Cord	90 VAC	264 VAC	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "
Phihong USA PPL18U-180	Positive Center	40 °C		18 V	ITE (Commercial)	International	62368-1	IEC 320-C14	CoC Tier 2 Level VI	Desktop (Class I)		1.5 m	59 in	20 W	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Cord	90 VAC	264 VAC	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	75 mW
Phihong USA PPL18U-240	Positive Center	40 °C	800 mA	24 V	ITE (Commercial)	International	62368-1	IEC 320-C14	CoC Tier 2 Level VI	Desktop (Class I)		1.5 m	59 in	19 W	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Cord	90 VAC	264 VAC	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	75 mW
Phihong USA PPL18U-120	Positive Center	40 °C	1.6 A	12 V	ITE (Commercial)	International	62368-1	IEC 320-C14	CoC Tier 2 Level VI	Desktop (Class I)		1.5 m	59 in	19 W	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Cord	90 VAC	264 VAC	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	75 mW
Phihong USA PPL18U-150	Positive Center	40 °C	1.3 A	15 VDC	ITE (Commercial)	International	62368-1	IEC 320-C14	CoC Tier 2 Level VI	Desktop (Class I)		1.5 m	59 in	20 W	cULus IEC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Cord	90 VAC	264 VAC	33 mm	1.97 "	100 mm	3.94 in	50 mm	1.3 "	75 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.96
		5	$ 13.58
		10	$ 12.83
		25	$ 12.07
		50	$ 11.32
		100	$ 10.56
		250	$ 10.19
		500	$ 10.03

Description

General part information

PPL18U Series

12V 19 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
