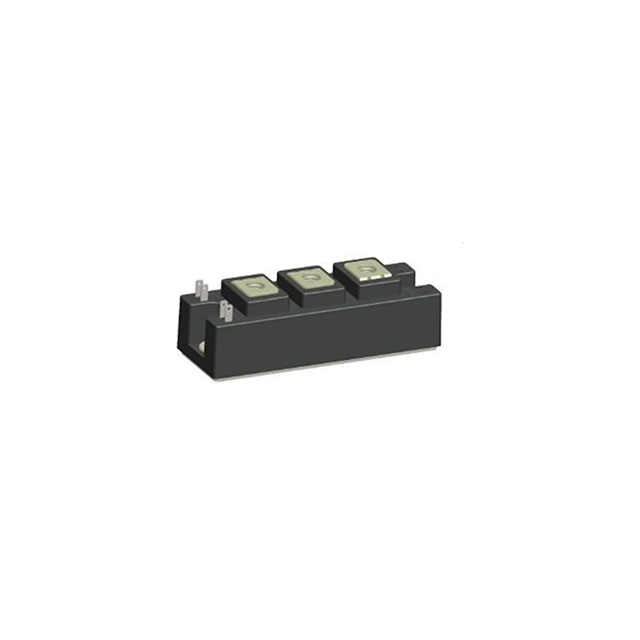

SSKT160-08

Active

SMC Diode Solutions

SCR MODULE 800V T2

Search across all available documentation for this part.

Active

SMC Diode Solutions

SCR MODULE 800V T2

Technical Specifications

Parameters and characteristics for this part

Specification	SSKT160-08

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	400 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	5000 A
Current - On State (It (AV)) (Max) [Max]	160 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	T2
Structure	Series Connection - All SCRs
Voltage - Off State	800 V

Part	Current - On State (It (AV)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Mounting Type	Package / Case	Number of SCRs, Diodes	Structure	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Gate Trigger (Igt) (Max) [Max]
SMC Diode Solutions SSKT160-08	160 A	400 mA	800 V	Chassis Mount	T2	2 SCRs	Series Connection - All SCRs	5000 A	-40 °C	125 ¯C	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 59.94

General part information

SCR Module 800 V Series Connection - All SCRs Chassis Mount T2
