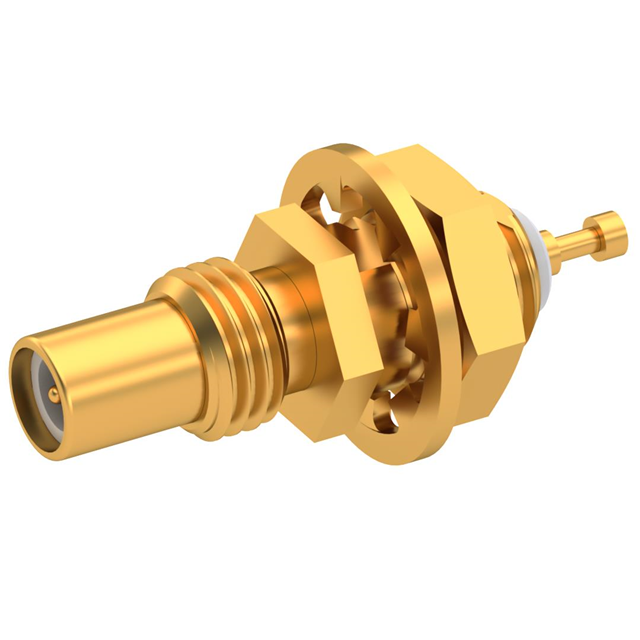

7119-1512-000

Active

Radiall USA, Inc.

SSMC M STR BHD TUR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC M STR BHD TUR

Technical Specifications

Parameters and characteristics for this part

Specification	7119-1512-000

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Feature	Body Material	Includes	Mating Cycles	Number of Ports	Fastening Type	Contact Termination	Frequency - Max [Max]	Center Contact Material	Housing Color	Connector Type	Impedance	Voltage Rating	Connector Style	Dielectric Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Shield Termination
Radiall USA, Inc. 7119-1512-000	Bulkhead - Rear Side Nut	Beryllium Copper	1 Connector 1 Lockwasher 1 Nut	500	1	Snap-On	Solder	12.4 GHz	Beryllium Copper	Gold	Jack Male Pin	50 Ohms	250 VDC	SSMC	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Gold	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMC Connector Jack, Male Pin 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
