1411134

Active

Phoenix Contact

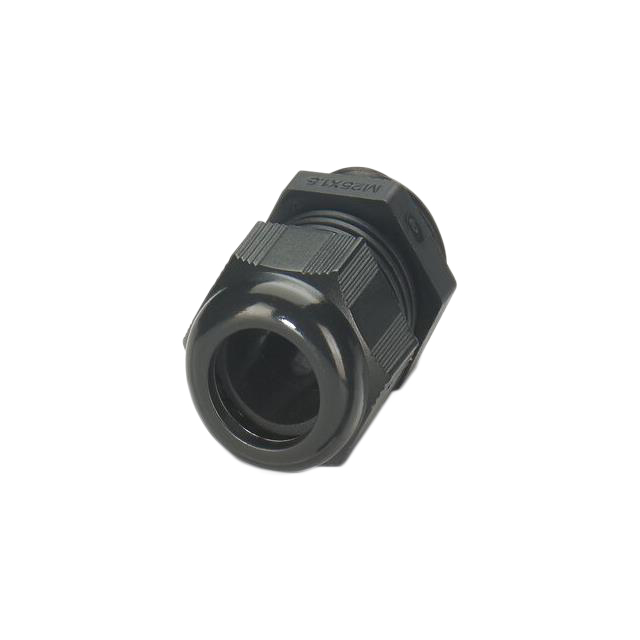

CABLE GLAND 11-16.99MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 11-16.99MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	1411134

Color	Black
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	16.99 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.669 in
Outside Cable Diameter (Min) [Min] [diameter]	0.433 in
Outside Cable Diameter (Min) [Min] [diameter]	11 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M25
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Type	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Thread Length	Thread Length	Material	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1424482	0.709 in	18.01 mm	Black	Cable Gland	100 °C	-40 °C	Seal	10 mm	0.394 in	Polyamide (PA) Nylon	M25x1.5	0.512 in	13 mm	IP66/IP68
Phoenix Contact 1424472	0.709 in	18.01 mm	Gray	Cable Gland	100 °C	-20 C	Seal	10 mm	0.394 in	Polyamide (PA) Nylon	M25x1.5	0.512 in	13 mm	IP66/IP68
Phoenix Contact 1424527			Silver	Cable Gland	100 °C	-40 °C	O-Ring Seal	8 mm	0.315 in	Brass Nickel Plated	M25x1.5	0.394 in		IP66 IP68 IP69	14 mm	0.551 "	10 mm
Phoenix Contact 1411134	0.669 in	16.99 mm	Black	Cable Gland	100 °C	-40 °C	Seal	8 mm	0.315 in	Polyamide (PA) Nylon	M25	0.433 in		IP66/IP68			11 mm
Phoenix Contact 1424544	0.669 in	16.99 mm	Silver	Cable Gland	100 °C	-40 °C	O-Ring Seal	8 mm	0.315 in	Stainless Steel	M25x1.5	0.433 in		IP66 IP68 IP69			11 mm
Phoenix Contact 1424477	0.709 in	18.01 mm	Gray	Cable Gland	100 °C	-40 °C	Seal	10 mm	0.394 in	Polyamide (PA) Nylon	M25x1.5	0.512 in	13 mm	IP66/IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M25 Black
