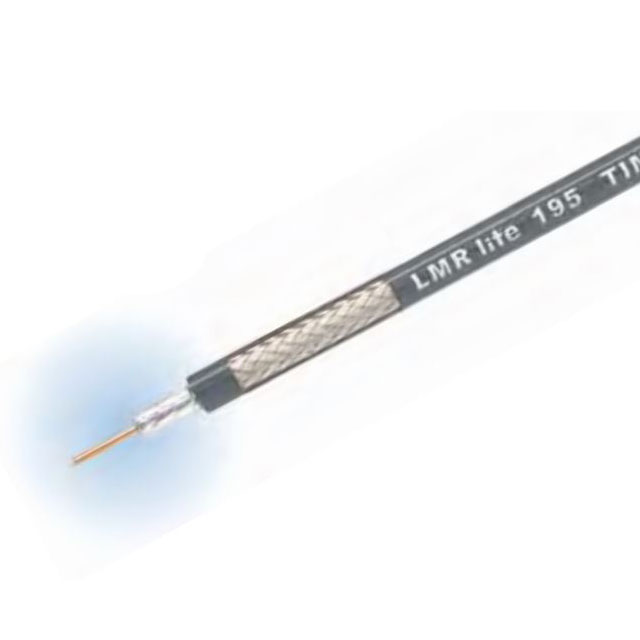

LMR-LW195
ActiveAmphenol Times Microwave Systems
STANDARD CABLE, ALUM BRAID FOOT
Deep-Dive with AI
Search across all available documentation for this part.
LMR-LW195
ActiveAmphenol Times Microwave Systems
STANDARD CABLE, ALUM BRAID FOOT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-LW195 |
|---|---|
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 2.79 mm |
| Dielectric Diameter [diameter] | 0.11 in |
| Dielectric Material | Foam Polyethylene (FPE) |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.195 in |
| Jacket (Insulation) Diameter [diameter] | 4.95 mm |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Material | Aluminum |
| Shield Type | Braid |
| Spool Size | 500 ' |
| Spool Size | 152.4 m |
| VoP, Velocity of Propagation | 80 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 1.74 | |
| 3 | $ 1.61 | |||
| 5 | $ 1.55 | |||
| 7 | $ 1.51 | |||
| 10 | $ 1.48 | |||
| 25 | $ 1.39 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
Description
General part information
LMR-LW1 Series
Coaxial Cable Enter Number of Feet in Order Quantity 50 Ohms
